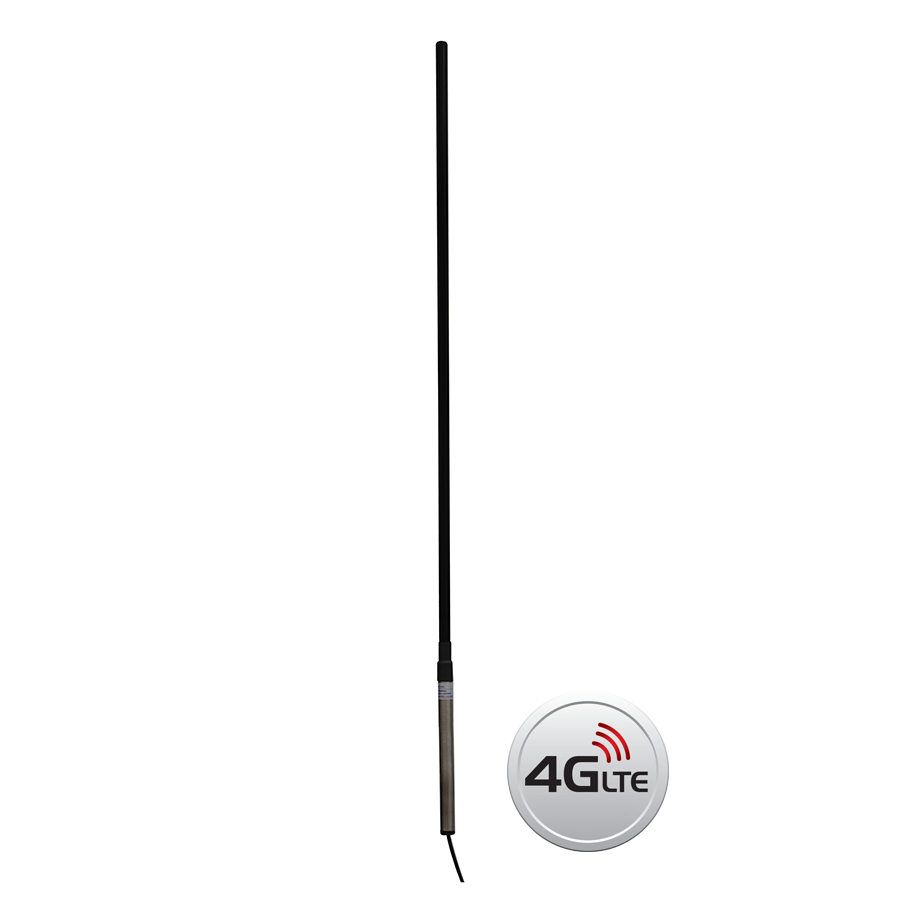

4G LTE Cellular Base Antenna – 698-2700MHz, 8.5 dBi
The evolution continues with the release of the COL7100 4G LTE cellular telemetry antennas. Like the COL2100, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.
The evolution continues with the release of the COL7100 Series 4G LTE cellular Meander™
collinear antenna. Like the COL2100 Series, the secret to its outstanding performance lies in
the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled
together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The
result is a unique antenna able to operate across all mobile phone networks globally, housed
in one unit.
With a 200mm (x 19mm) stainless steel mounting tube, the COL7100 Series is designed to be
mounted to a vertical support structure using the two supplied stainless steel hose clamps,
which have an adjustment of 27-51mm.
Features:
– Patented PCB based collinear design offering the ultimate in pattern and gain stability
– Ideal for all new 4G LTE networks with true multi-band coverage
– High gain across 4Gx/4G+ band suiting fringe and rural applications
| Nominal Gain dBi | 8.5 @ 698 – 960MHz, 4.5 @ 1710 – 2200MHz, 5.5dBi @ 2300-2700MHz |
| Frequency MHz | 698 to 960MHz, 1710 to 2700MHz, 2300-2700MHz |
| Tunable Bandwidth | Full. No tuning required |
| VSWR | <2.5:1 |
| Nominal Impedance Ω | 50 |
| Polarisation | Vertical |
| Vertical Beamwidth | 15° @ 698-960MHz / 15° @ 1710-2200MHz / 20° @ 2300-2700MHz |
| Horizontal Beamwidth | Omni |
| Power W | 10 |
| Construction | Black fiberglass with 200mm stainless steel mounting tube |
| Length mm | 1730 |
| Radome Diameter mm | 15.6 |
| Weight (kg) | 0.62 |
| Termination | 10m 9006 (RG58) low loss cable terminated with FME female connector and supplied with FME male to SMA male adaptor |
| Mounting Area | 1200 x 19mm stainless steel mounting tube & 2 x stainless steel hose clamps (included) |
| Shipping Weight (lbs.) | 10 |
| Shipping Dims (inches) | 72x4x4 |
