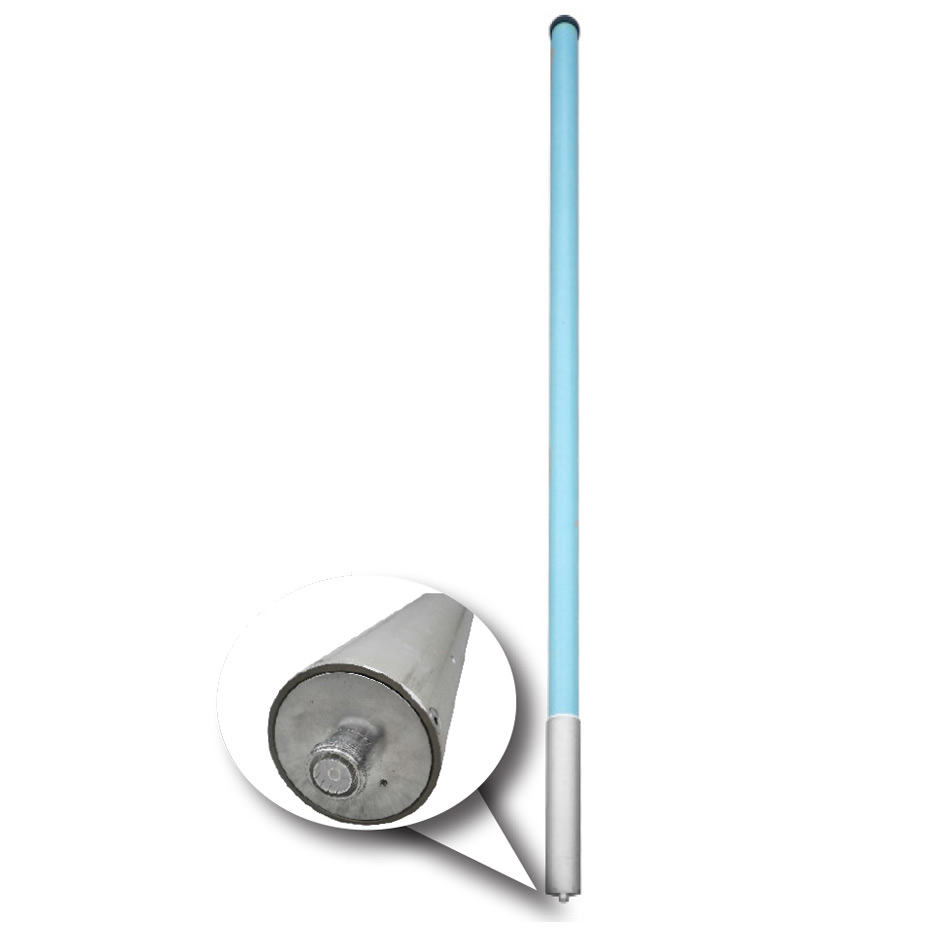

These robust, high-powered antennas cover the frequency ranges of 380-512 MHz & 746-870 MHz, and are a great alternative to traditional exposed dipole array antennas, packaged in a low profile fiberglass radome. This preferred form factor provides a reduction in wind loading, ice loading and tower loading when compared to exposed dipole array configurations. Features include:

  • High power, high gain and lower internal loss
  • Superior pattern control
  • -150 dBc PIM rated
  • 25kW PIP rating
  • Field Invertible (excludes tilt variants)


Create PDF and Print
Part Number Product Description Conn. TypeFreq BandNominal Gain dBdFreq MHzVert BeamwidthHoriz BeamwidthPower W
Selection Guide 746-930 MHz 700/800 MHz Antenna Selection Guide 4.3-10 700/800 — — — — —
Selection Guide 400-520 MHz Global UHF Antenna Selection Guide 4.3-10 UHF — — — — —
Selection Guide 330-430 MHz Global UHF Antenna Selection Guide 4.3-10 UHF — — — — —
CC807-12-T4-P 700/800 MHz Corporate Collinear, 11.5dBd, 746-870MHz, 4° Downtilt 4.3-10 700/800 11.5 746 – 870 4° Omni +/- 0.5dB 500
CC807-12-T2-P 700/800 MHz Corporate Collinear, 11.5dBd, 746-870MHz, 2° Downtilt 4.3-10 700/800 11.5 746 – 870 4° Omni +/- 0.5dB 500
CC807-12-P 700/800 MHz Corporate Collinear, 11.5dBd, 746-870MHz 4.3-10 700/800 11.5 746 – 870 4° Omni +/- 0.5dB 500
CC807-11-T5-P 700/800 MHz Corporate Collinear, 10dBd, 746-870MHz, 5° Downtilt 4.3-10 700/800 10.5 746 – 870 4.5° Omni +/- 0.5dB 500
CC807-11-T4-P 700/800 MHz Corporate Collinear, 10dBd, 746-870MHz, 4° Downtilt 4.3-10 700/800 10.5 746 – 870 4.5° Omni +/- 0.5dB 500
CC807-11-T3-P 700/800 MHz Corporate Collinear, 10dBd, 746-870MHz, 3° Downtilt 4.3-10 700/800 10.5 746 – 870 4.5° Omni +/- 0.5dB 500
CC807-11-T2-P 700/800 MHz Corporate Collinear, 10dBd, 746-870MHz, 2° Downtilt 4.3-10 700/800 10.5 746 – 870 4.5° Omni +/- 0.5dB 500
CC807-11-T1-P 700/800 MHz Corporate Collinear, 10dBd, 746-870MHz, 1° Downtilt 4.3-10 700/800 10.5 746 – 870 4.5° Omni +/- 0.5dB 500
CC807-11-P 700/800 MHz Corporate Collinear, 10.5dBd, 746-870MHz 4.3-10 700/800 10.5 746 – 870 4.5° Omni +/- 0.5dB 500
CC807-09-T4-P 700/800 MHz Corporate Collinear, 9dBd, 746-870MHz, 4° Downtilt 4.3-10 700/800 9 746 – 870 8° Omni +/- 0.5dB 500
CC807-09-T2-P 700/800 MHz Corporate Collinear, 9dBd, 746-870MHz, 2° Downtilt 4.3-10 700/800 9 746 – 870 8° Omni +/- 0.5dB 500
CC807-09-P 700/800 MHz Corporate Collinear, 9dBd, 746-870MHz 4.3-10 700/800 9 746 – 870 8° Omni +/- 0.5dB 500
CC807-08-T5-P 700/800MHz Corporate Collinear, 8dBd, 746-870MHz, 5° Downtilt 4.3-10 700/800 8 746 – 870 9° Omni +/- 0.5dB 500
CC807-08-T4-P 700/800 MHz Corporate Collinear, 8dBd, 746-870MHz, 4° Downtilt 4.3-10 700/800 8 746 – 870 9° Omni +/- 0.5dB 500
CC807-08-T3-P 700/800 MHz Corporate Collinear, 8dBd, 746-870MHz, 3° Downtilt 4.3-10 700/800 8 746 – 870 9° Omni +/- 0.5dB 500
CC807-08-T2-P 700/800 MHz Corporate Collinear, 8dBd, 746-870MHz, 2° Downtilt 4.3-10 700/800 8 746 – 870 9° Omni +/- 0.5dB 500
CC807-08-T1-P 700/800 MHz Corporate Collinear, 8dBd, 746-870MHz, 1° Downtilt -, 4.3-10 700/800 8 746 – 870 9° Omni +/- 0.5dB 500
CC807-08-P 700/800 MHz Corporate Collinear, 8dBd, 746-870MHz 4.3-10 700/800 8 746 – 870 9° Omni +/- 0.5dB 500
CC807-06-T5-P 700/800 MHz Corporate Collinear, 6dBd, 746-870MHz, 5° Downtilt 4.3-10 700/800 6 746 – 870 17° Omni +/- 0.5dB 500
CC807-06-T3-P 700/800 MHz Corporate Collinear, 6dBd, 746-870MHz, 3° Downtilt 4.3-10 700/800 6 746 – 870 17° Omni +/- 0.5dB 500
CC807-06-P 700/800 MHz Corporate Collinear, 6dBd, 746-870MHz 4.3-10 700/800 6 746 – 870 17° Omni +/- 0.5dB 500
CC807-03-P 700/800 MHz Corporate Collinear, 3dBd, 746-870MHz 4.3-10 700/800 3 746 – 870 28° Omni +/- 0.5dB 250
CC450-09-T6-P UHF Corporate Collinear, 8.5dBd, 450-512MHz, 6° Downtilt 4.3-10 UHF 8.5 450 – 512 8° Omni +/- 0.5dB 500
CC450-09-T3-P UHF Corporate Collinear, 8.5dBd, 450-520MHz, 3° Downtilt 4.3-10 UHF 8.5 450 – 512 8° Omni +/- 0.5dB 500
CC450-09-P UHF Corporate Collinear, 8.5dBd, 450-512MHz 4.3-10 UHF 8.5 450 – 512 8° Omni +/- 0.5dB 500
CC450-06-T6-P UHF Corporate Collinear, 6dBd, 450-512MHz, 6° Downtilt 4.3-10 UHF 6 450 – 512 15° Omni +/- 0.5dB 500
CC450-06-T3-P UHF Corporate Collinear, 6dBd, 450-512MHz, 3° Downtilt 4.3-10 UHF 6 450 – 512 15° Omni +/- 0.5dB 500
CC450-06-P UHF Corporate Collinear, 6dBd, 450-512MHz 4.3-10 UHF 6 450 – 512 15° Omni +/- 0.5dB 500
CC380-06-P UHF Corporate Collinear, 6dBd, 380-430MHz 4.3-10 UHF 6 380 – 430 35° Omni +/- 0.5dB 500
