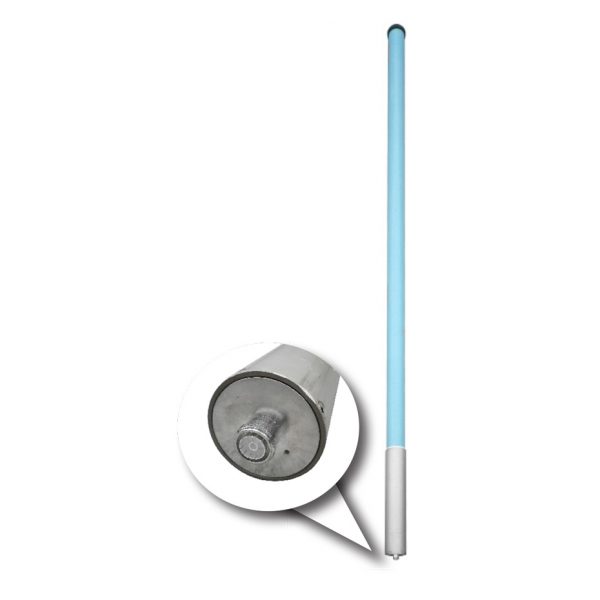

700/800 MHz Corporate Collinear, 9dBd, 746-870MHz, 2° Downtilt

These industry leading PIM and PIP rated collinear arrays allow site operators to combine, with complete integrity, a large number of communications services into a single, low profile collinear
antenna array.

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: CC807-09-T2-P Category:

CC807-09-T2-P Features:

The true corporate feed of these arrays maintains total pattern integrity over a very broad operating bandwidth, similar to that previously available only in exposed dipole configurations. This is now achieved in the preferred form factor of a fully enclosed fiberglass radome. The corporate collinears employ a unique corporate phasing system enabling precision control of the element placements ensuring phase purity resulting in exceptional bandwidth and electrical performance.

Gain is maximized and side lobes reduced dramatically. In a patented design approach the individual dipole elements including matching network are fabricated entirely of a flexible circuit board. The dipole elements are soldered to a brass support tube which is directly connected to the mounting tube and the lightning spike at the top of the antenna.

• 500W Continuous Power rating
• -150dBc Passive Intermodulation (PIM) rating
• 25kW Peak Instantaneous Power (PIP) rating
• Extraordinary bandwidth characteristics with superior pattern control
• DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise.

Nominal Gain dBd 9
Frequency MHz 746 to 870MHz
Peak Instantaneous Power kW 25
Tunable Bandwidth Full band
VSWR <1.5:1
Vertical Beamwidth 8
Horizontal Beamwidth Omni +/- 0.5dB
Power W 500
Passive IM 3rd Order (2x20W) dBc -150
Construction Composite fiberglass sky, blue radome, aluminum mounting tube
Radome Diameter (inch) 30
Weight (pound) 31
Termination 4.3-10 fixed female
Invertible Mounting No
in else

PDF Downloads

Shipping Weight (lbs.) 44.1
Shipping Dims (inches) 130x4x4
