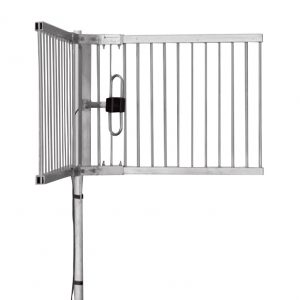

Screened Dipole Array

Screened dipole antennas deliver high gain and excellent front to back ratios for critical path or high interference applications. Constructed with a grid style back screen to maximize pattern control, these all-welded screens have an alodined finish for corrosion protection and utilize stainless steel fittings.

Create PDF and Print
Product Filter

Frequency Band


Frequency in MHz


Part Number Product Description Conn. TypeFreq BandNominal Gain dBdFreq MHzVert BeamwidthHoriz BeamwidthPower W
CR2-162 VHF Corner Reflector, 7dBd, 136-162MHz N (F) VHF 7 136 – 162 69° 62° 750
CSA20-67-P UHF Screened Dipole Array, 9dBd, 406-512MHz 4.3-10 UHF 7 406 – 512 35° 69° 500
CSA40-67-P UHF Screened Dipole Array, 11dBd, 420-520MHz 4.3-10 UHF 7 420 – 520 17° 70° 500
CSA10-67-P UHF Screened Dipole Array, 7dBd, 406-512MHz 4.3-10 UHF 7 406 – 512 71° 70° 500
CSA10-41-P VHF Screened Dipole Array, 7dBd, 148-174MHz 4.3-10 VHF 7 148 – 174 66° 64° 750
FSA20-41-P VHF Screened Dipole Array, 7dBd, 108°Beamwidth, 148-174MHz 4.3-10 VHF 7 148 – 174 34° 108° 750
FSA20-67-P UHF Screened Dipole Array, 7dBd, 130°Beamwidth, 406-512MHz 4.3-10 UHF 6 403 – 512 35° 132° 500
FSA40-67-P UHF Screened Dipole Array, 9dBd, 132°Beamwidth, 406-512MHz 4.3-10 UHF 9 403 – 512 17° 135° 500
CR2-174 VHF Corner Reflector, 7dBd, 148-174MHz N (F) VHF 7 148 – 174 69° 62° 750
CSA20-41-P VHF Screened Dipole Array, 9dBd, 148-174MHz 4.3-10 VHF 9 148 – 174 35° 62° 750
FSA10-41-P VHF Screened Dipole Array, 5dBd, 106° Beamwidth, 148-174MHz 4.3-10 VHF 5 148 – 174 70° 106° 750
FSA10-67-P UHF Screened Dipole Array, 5dBd, 130° Beamwidth, 406-512MHz 4.3-10 UHF 5 403 – 512 71° 121° 500
