Meander Collinear

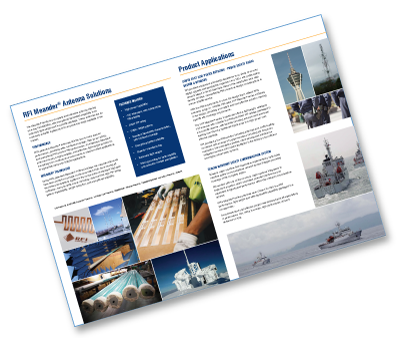

Our extensive range of collinear antennas is available in frequency specific designs suitable for both simplex and duplex applications and in addition feature our innovative broadband low PIM patented corporate feed antennas and PCB based Meander™ technology. The Meander® family is a complete and extensive base station antenna offering, covering 130-930MHz, with exceptional bandwidth capability in an extremely light-weight and low profile package. These antennas are an extremely versatile replacement for any antenna range available in the market. Learn more about our patented Meander® Technology, case studies and our complete range by downloading our brochure!


Create PDF and Print
Part Number Product Description Conn. TypeFreq BandNominal Gain dBdFreq MHzVert BeamwidthHoriz BeamwidthPower W
COL410-400-P UHF Meander™ Collinear, 9dBd, 380-400MHz 4.3-10 UHF 9 380 – 400 7.2° Omni +/- 0.5dB 250
COL410-420-P UHF Meander™ Collinear, 9dBd, 400-420MHz 4.3-10 UHF 9 400 – 420 7.2° Omni +/- 0.5dB 250
COL410-430-P UHF Meander™ Collinear, 9dBd, 410-430MHz 4.3-10 UHF 9 410 – 430 7.2° Omni +/- 0.5dB 250
COL41-400-P UHF Meander™ Collinear, 0dBd, 380-400MHz 4.3-10 UHF 0 380 – 400 109° Omni +/- 0.5dB 250
COL41-420-P UHF Meander™ Collinear, 0dBd, 400-420MHz 4.3-10 UHF 0 400 – 420 96° Omni +/- 0.5dB 250
COL41-470-P UHF Meander™ Collinear, 0dBd, 450-470MHz 4.3-10 UHF 0 450 – 470 71° Omni +/- 0.5dB 250
COL41-490-P UHF Meander™ Collinear, 0dBd, 470-490MHz 4.3-10 UHF 0 470 – 490 69° Omni +/- 0.5dB 250
COL41-520-P UHF Meander™ Collinear, 0dBd, 490-520MHz 4.3-10 UHF 0 490 – 520 57° Omni +/- 0.5dB 250
COL43-400-P UHF Meander™ Collinear, 5dBd, 380-400MHz 4.3-10 UHF 5 380 – 400 21° Omni +/- 0.5dB 250
COL43-420-P UHF Meander™ Collinear, 5dBd, 400-420MHz 4.3-10 UHF 5 400 – 420 21° Omni +/- 0.5dB 250
COL43-430-P UHF Meander™ Collinear, 5dBd, 410-430MHz 4.3-10 UHF 5 410 – 430 21° Omni +/- 0.5dB 250
COL43-470-P UHF Meander™ Collinear, 5dBd, 450-470MHz 4.3-10 UHF 5 450 – 470 21° Omni +/- 0.5dB 250
COL43-520-P UHF Meander™ Collinear, 5dBd, 490-520MHz 4.3-10 UHF 5 490 – 520 21° Omni +/- 0.5dB 250
COL45-430-P UHF Meander™ Collinear, 7dBd, 410-430MHz 4.3-10 UHF 7 410 – 430 12.5° Omni +/- 0.5dB 250
COL51-160-P VHF Meander™ Collinear, 0dBd, 150-160MHz 4.3-10 VHF 0 150 – 160 92° Omni +/- 0.5dB 400
COL53-140-P VHF Meander™ Collinear, 4dBd, 130-140MHz 4.3-10 VHF 4 130 – 140 23.4° Omni +/- 0.5dB 400
COL53-150-P VHF Meander™ Collinear, 4dBd, 140-150MHz 4.3-10 VHF 4 140 – 150 23.4° Omni +/- 0.5dB 400
COL53-160-P VHF Meander™ Collinear, 4dBd, 150-160MHz 4.3-10 VHF 4 150 – 160 23.4° Omni +/- 0.5dB 400
COL53-174-P VHF Meander™ Collinear, 4dBd, 160-174MHz 4.3-10 VHF 4 162 – 174 23.4° Omni +/- 0.5dB 400
COL54-155-P VHF Meander™ Collinear, 6dBd, 145-155MHz 4.3-10 VHF 6 145 – 155 17° Omni +/- 0.5dB 400
COL54-160-P VHF Meander™ Collinear, 6dBd, 150-160MHz 4.3-10 VHF 6 150 – 160 17° Omni +/- 0.5dB 400
COL54-166-P VHF Meander™ Collinear, 6dBd, 156-166MHz 4.3-10 VHF 6 156 – 166 17° Omni +/- 0.5dB 400
COL54-174-P VHF Meander™ Collinear, 6dBd, 162-174MHz 4.3-10 VHF 6 162 – 174 17° Omni +/- 0.5dB 400
COL811-806-P 700/800 MHz Meander™ Collinear, 9dBd, 748-806MHz 4.3-10 700/800 9 746 – 806 6.5° Omni +/- 0.5dB 250
COL811-824-P 700/800 MHz Meander™ Collinear, 9dBd, 796-824MHz 4.3-10 700/800 9 796 – 824 6.5° Omni +/- 0.5dB 250
COL811-870-P 800 MHz Meander™ Collinear, 9dBd, 806-870MHz 4.3-10 800 9 806 – 870 6.5° Omni +/- 0.5dB 250
COL811-930-P 800/900 MHz Meander™ Collinear, 9dBd, 850-930MHz 4.3-10 800/900 9 850 – 930 6.5° Omni +/- 0.5dB 250
COL81-930-P 800/900MHz Meander™ Collinear, 0dBd, 850-930MHz 4.3-10 800/900 0 850 – 930 67° Omni +/- 0.5dB 250
COL85-806-P 700/800 MHz Meander™ Collinear, 7dBd, 748-806MHz 4.3-10 700/800 7 746 – 806 13° Omni +/- 0.5dB 250
COL85-870-P 800 MHz Meander™ Collinear, 7dBd, 806-870MHz 4.3-10 800 7 806 – 870 13° Omni +/- 0.5dB 250
COL85-930-P 800/900 MHz Meander™ Collinear, 7dBd, 850-930MHz 4.3-10 800/900 7 850 – 930 13° Omni +/- 0.5dB 250
COL410-470-P UHF Meander™ Collinear, 9dBd, 450-470MHz 4.3-10 UHF 9 450 – 470 7.2° Omni +/- 0.5dB 250
COL410-490-P UHF Meander™ Collinear, 9dBd, 470-490MHz 4.3-10 UHF 0 470 – 490 7.2° Omni +/- 0.5dB 250
COL410-520-P UHF Meander™ Collinear, 9dBd, 490-520MHz – UHF 0 490 – 520 7.2° Omni +/- 0.5dB 250
COL45-400-P UHF Meander™ Collinear, 7dBd, 380-400MHz 4.3-10 UHF 7 380 – 400 12.5° Omni +/- 0.5dB 250
COL45-420-P UHF Meander™ Collinear, 7dBd, 400-420MHz 4.3-10 UHF 7 400 – 420 12.5° Omni +/- 0.5dB 250
COL45-470-P UHF Meander™ Collinear, 7dBd, 450-470MHz 4.3-10 UHF 7 450 – 470 12.5° Omni +/- 0.5dB 250
COL45-490-P UHF Meander™ Collinear, 7dBd, 470-490MHz 4.3-10 UHF 7 470 – 490 12.5° Omni +/- 0.5dB 250
COL45-520-P UHF Meander™ Collinear, 7dBd, 490-520MHz 4.3-10 UHF 7 490 – 520 12.5° Omni +/- 0.5dB 250
COL43-490-P UHF Meander™ Collinear, 5dBd, 470-490MHz 4.3-10 UHF 5 470 – 490 21° Omni +/- 0.5dB 250
COL51-140-P VHF Meander™ Collinear, 0dBd, 130-140MHz 4.3-10 VHF 2.1 (0) 130 – 140 100° Omni +/- 0.5dB 400
COL51-150-P VHF Meander™ Collinear, 0dBd, 140-150MHz 4.3-10 VHF 0 140 – 150 106° Omni +/- 0.5dB 400
COL51-166-P VHF Meander™ Collinear, 0dBd, 156-166MHz 4.3-10 VHF 0 156 – 166 76° Omni +/- 0.5dB 400
COL51-174-P VHF Meander™ Collinear, 0dBd, 162-174MHz 4.3-10 VHF 0 162 – 174MHz 82° Omni +/- 0.5dB 400
COL53-166-P VHF Meander™ Collinear, 4dBd, 156-166MHz 4.3-10 VHF 4 156 – 166 23.4° Omni +/- 0.5dB 400
COL81-806-P 700/800MHz Meander™ Collinear, 0dBd, 746-806MHz 4.3-10 700/800 0 746 – 806 67° Omni +/- 0.5dB 250
COL81-870-P 800MHz Meander™ Collinear, 0dBd, 806-870MHz 4.3-10 800 0 806 – 870 67° Omni +/- 0.5dB 250
COL84-806-P 700/800MHz Meander™ Collinear, 5dBd, 746-806MHz 4.3-10 700/800 5 746 – 806 16° Omni +/- 0.5dB 250
COL84-870-P 800MHz Meander™ Collinear, 5dBd, 806-870MHz 4.3-10 800 5 806 – 870 16° Omni +/- 0.5dB 250
COL84-930-P 800/900MHz Meander™ Collinear, 5dBd, 850-930MHz 4.3-10 800/900 5 850 – 930 16° Omni +/- 0.5dB 250
Selection Guide 136-174 MHz Global VHF Antenna Selection Guide 4.3-10 VHF — — — — —
Selection Guide 330-430 MHz Global UHF Antenna Selection Guide 4.3-10 UHF — — — — —
Selection Guide 400-520 MHz Global UHF Antenna Selection Guide 4.3-10 UHF — — — — —
Selection Guide 746-930 MHz 700/800 MHz Antenna Selection Guide 4.3-10 700/800 — — — — —
