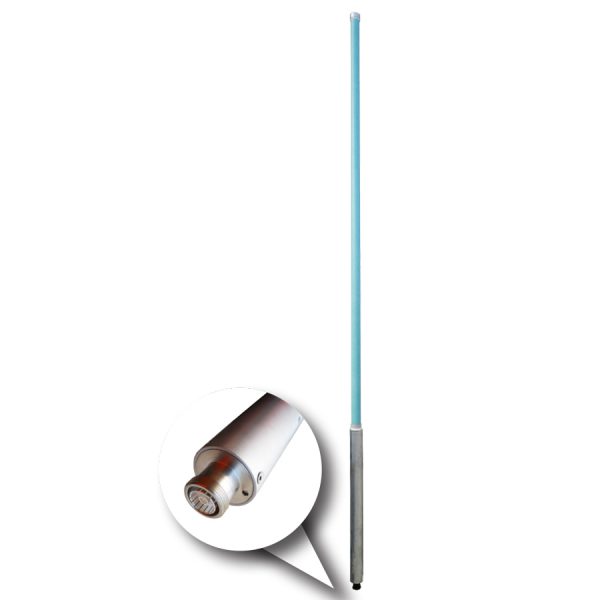

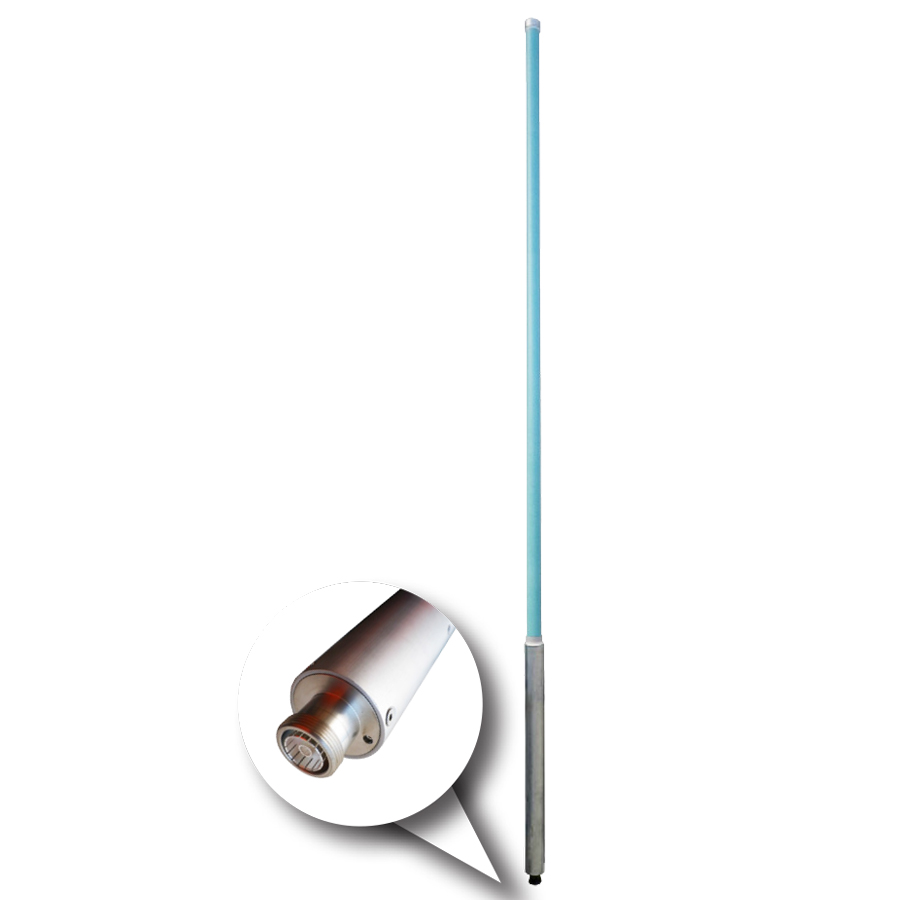

700/800 MHz Meander™ Collinear, 7dBd, 748-806MHz
Meander Collinear, 7dBd, 748-806MHz, PIM Rated
COL85-806-P Features
This range of Meander™ collinear antennas has been specifically designed for wireless applications requiring
high performance, broad bandwidth and exceptional PIM and PIP specifications.
The patented Meander™ collinear element design allows multiple half wave elements to be stacked without
the variations in cable lengths and mechanical joints which have typified the construction techniques in high
gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to
passive intermodulation is practically eliminated.
Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each
and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.
- Excellent bandwidth providing full band coverage
- Internally DC grounded for lightning protection and the reduction of precipitation noise
- Patented Meander™ PCB design for optimum RF pattern stability
- Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum network performance
- Excellent Peak Instantaneous Power(PIP) rating (25kW)
| Nominal Gain dBd | 7 |
| Frequency MHz | 746-806MHz |
| Peak Instantaneous Power kW | 25 |
| Tunable Bandwidth | Full band |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Vertical Beamwidth | 13° |
| Horizontal Beamwidth | Omni +/- 0.5dB |
| Power W | 250 |
| Passive IM 3rd Order (2x20W) dBc | <-150 |
| Construction | Composite fiberglass sky blue radome, aluminum mounting tube |
| Length (inch) | 77 |
| Radome Diameter (inch) | 1.5 |
| Weight (lb) | 4.8 |
| Termination | 4.3-10 Female |
| Mounting Area | 19.7in x 1.9in diameter Ecofilm™ plated aluminum |
PDF Downloads
Digitized Patterns
- To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
| Shipping Weight (lbs.) | 10 |
| Shipping Dims (inches) | 83x5x5 |
