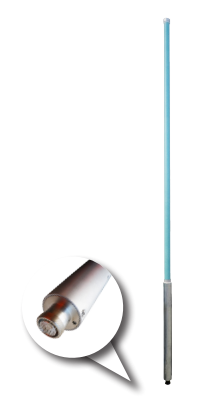

UHF Meander™ Collinear, 7dBd, 400-420MHz

Meander Collinear, 7dBd, 400-420MHz, PIM Rated

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: COL45-420-P Category:

COL45-420-P Features:

The patented Meander™ collinear element design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated.

Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

– Excellent bandwidth providing full band coverage
– Internally DC grounded for lightning protection and the reduction of precipitation noise
– Patented Meander™ PCB design for optimum RF pattern stability
– Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for
optimum network performance
– Excellent Peak Instantaneous Power(PIP) rating (25kW)

Nominal Gain dBi 9.1
Nominal Gain dBd 7
Frequency MHz 400 to 420MHz
Peak Instantaneous Power kW 25
Tunable Bandwidth Full band
VSWR <1.5:1
Polarisation Vertical
Vertical Beamwidth 12.5°
Horizontal Beamwidth Omni /- 0.5dB
Power W 250
Passive IM 3rd Order (2x20W) dBc -150
Construction Sky blue fiberglass radome
Length (inch) 122
Radome Diameter (inch) 1.5
Weight (pound) 7
Termination 4.3-10 Female
Mounting Area 19.7in x 1.9in diameter Ecofilm™ plated aluminum



in else

PDF Downloads

Digitized Patterns

    To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
Shipping Weight (lbs.) 25
Shipping Dims (inches) 128x3x3
