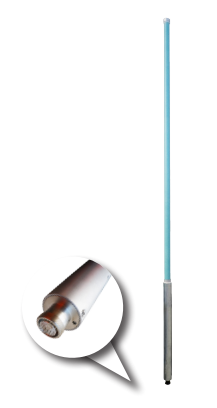

UHF Meander™ Collinear, 9dBd, 490-520MHz
Omni, Meander Collinear, 9dBd, 490-520MHz, PIM Rated
COL410-520-P Features:
The patented Meander™ collinear element design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated.
Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.
-Excellent bandwidth providing full band coverage
-Internally DC grounded for lightning protection and the reduction of precipitation noise
-Patented Meander™ PCB design for optimum RF pattern stability
-Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum network performance
-Excellent Peak Instantaneous Power(PIP) rating (25kW)
Nominal Gain dBi | 11.1 |
Nominal Gain dBd | 9 |
Frequency MHz | 490 to 520MHz |
Peak Instantaneous Power kW | 25 |
Tunable Bandwidth | Full band |
VSWR | <1.5:1 |
Polarisation | Vertical |
Vertical Beamwidth | 7.2° |
Horizontal Beamwidth | Omni /- 0.5dB |
Power W | 250 |
Passive IM 3rd Order (2x20W) dBc | -150 |
Construction | Composite fiberglass sky blue radome, aluminum mounting tube |
Length (inch) | 195 |
Radome Diameter (inch) | 2.6 |
Weight (pound) | 22 |
Termination | 4.3-10 Female |
Mounting Area | 30in x 3in diameter aluminum |
PDF Downloads
Digitized Patterns
- To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
Shipping Weight (lbs.) | 50 |
Shipping Dims (inches) | 195x5x5 |
