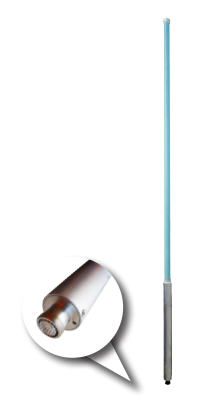

UHF MeanderTM Collinear, 9dBd, 470-490MHz, PIM Rated

This range of Meander™ collinear antennas have been specifically designed for UHF applications requiring high performance, strong bandwidth and exceptional PIM specifications.

SKU: COL410-490 Category:

COL410-490 Features:

-Excellent bandwidth providing full band coverage
-Internally DC grounded for lightning protection and the reduction of precipitation noise
-Patented Meander™ PCB design for optimum RF pattern stability
-Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum network performance
-Excellent Peak Instantaneous Power(PIP) rating (25kW)

The patented Meander™ collinear element design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated.

Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

Nominal Gain dBi (dBd) 9 (11.1)
Frequency MHz 470-490
Tuned Bandwidth 20
VSWR <1.5:1
Nominal Impedance Ω 50
Vertical Beamwidth 7.2
Horizontal Beamwidth Omni /- 0.5dB
Input Power Watts 250
Passive IM 3rd order (2x20W) – dBc -150
Peak Instantaneous Power kW 25
Front to Back Ratio dB > 23
Input Power W 500
Passive IM 3rd order dBc -145
Construction Fully enclosed in radome
Length x Width x Depth mm (in) 2200 x 560 x 180 (86.6 x 22.0 x 7.1)
Weight kg (lbs) 32 (70)
Weight including clamps kg (lbs) 36 (80)
Clamps (provided) Adjustable downtilt style
Clamp Diameter mm (in) Suits Ø70 to Ø120 (Ø2.76 to Ø4.72)
Termination 1 x DIN female
in else

PDF Downloads

Shipping Weight (lbs.) 50
Shipping Dims (inches) 206x5x5
