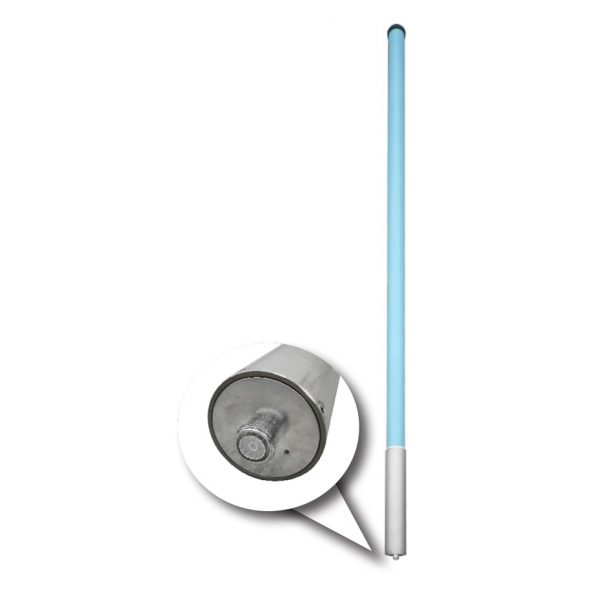

700/800 MHz Corporate Collinear, 10dBd, 746-870MHz, 5° Downtilt

Shipping Weight (lbs.) 80
Shipping Dims (inches) 220x5x5
Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: CC807-11-T5-P Category:

CC807-11-T5-P Features:

The true corporate feed of these arrays maintains total pattern integrity over a very broad operating bandwidth, similar to that previously available only in exposed dipole configurations. This is now achieved in the preferred form factor of a fully enclosed fiberglass radome. The corporate collinears employ a unique corporate phasing system enabling precision control of the element placements ensuring phase purity resulting in exceptional bandwidth and electrical performance.

Gain is maximized and side lobes reduced dramatically. In a patented design approach the individual dipole elements including matching network are fabricated entirely of a flexible circuit board. The dipole elements are soldered to a brass support tube which is directly connected to the mounting tube and the lightning spike at the top of the antenna.

• 500W Continuous Power rating
• -150dBc Passive Intermodulation (PIM) rating
• 25kW Peak Instantaneous Power (PIP) rating
• Extraordinary bandwidth characteristics with superior pattern control
• DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise.

Nominal Gain dBd 10.5
Frequency MHz 746 to 870MHz
Peak Instantaneous Power kW 25
Tunable Bandwidth Full band
VSWR <1.5:1
Downtilt
Vertical Beamwidth 4.5
Horizontal Beamwidth Omni /- 0.5dB
Power W 500
Passive IM 3rd Order (2x20W) dBc -150
Construction Composite fiberglass sky, blue radome, aluminum mounting tube
Radome Diameter (inch) 3
Weight (pound) 49
Termination 4.3-10 fixed female
Invertible Mounting No
in else

PDF Downloads

Digitized Patterns

    To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
