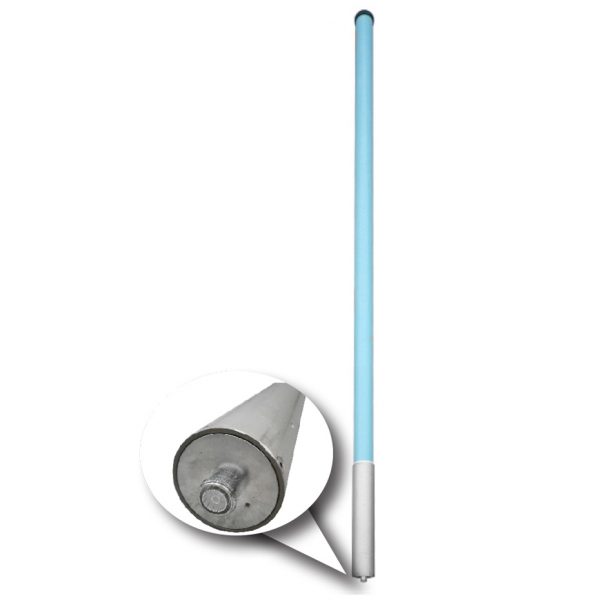

UHF Corporate Collinear, 6dBd, 450-512MHz, 3° Downtilt

These industry leading, full featured corporate collinear arrays allow site operators to combine, with complete integrity, a large number of communications services into a single, low profile antenna solution.

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: CC450-06-T3-P Category:

CC450-06-T3-P Features:

The corporate feed design employed by RFI maintains superior pattern control, allowing gain to be maximized with zero tilt variation over a very broad bandwidth, comparable to that only previously available in exposed dipole array configurations. This is achieved in the preferred form factor of a fully enclosed fiberglass radome, providing a reduction in wind loading, ice loading and tower loading in comparison.

The CC450 series have been designed with an exceptional power rating of 500W across the band as well as a Peak Instantaneous Power (PIP) rating of 25kW to cater for the peak voltage levels present in large multi-carrier combining environments. RFI’s refined design processes and proven construction methods achieve a PIM rating of –150dBc, further ensuring performance is maintained for the service life of the antenna.

  • Extraordinary bandwidth characteristics with superior pattern stability over an extended band coverage
  • Lightweight dipole construction using RFI’s patented flexi-PCB architecture maintains a low center of gravity reducing tip deflection and sway
  • DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise
  • Sealed PTFE insulated cables in harnessing ensure high power capability
  • -150dBc Passive Intermodulation (PIM) rating
  • 25 kW Peak Instantaneous Power (PIP) rating
Nominal Gain dBd 6
Frequency MHz 450 to 512MHz
Tunable Bandwidth Full band
VSWR <1.5:1 (14dB)
Vertical Beamwidth 15°
Horizontal Beamwidth Omni +/- 0.5dB
Power W 500
Passive IM 3rd Order (2x20W) dBc -150
Construction Composite fiberglass sky blue radome, aluminum mounting tube
Length (inch) 113
Radome Diameter (inch) 3
Weight (pound) 22
Termination Integrated 4.3-10 female
Mounting Area 20in x 3.5in diameter aluminum
Suggested Clamps UC-1142
Downtilt
Lateral (Thrust) mph 63
Wind Gust Rating mph >150
Torque @ 100mph ft-lbs. 252
in else

PDF Downloads

Digitized Patterns

    To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.

Shipping Weight (lbs.) 50
Shipping Dims (inches) 118x5x5
