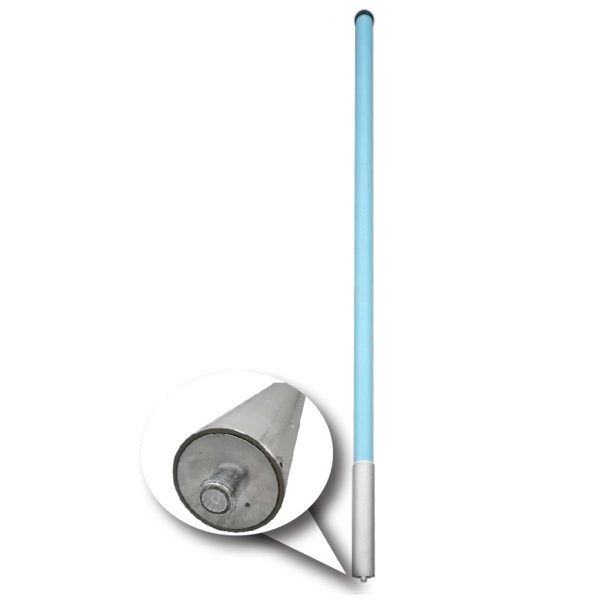

CC380-06-P Features:

These industry leading, full featured corporate collinear arrays allow site operators to combine, with complete integrity, a large number
of communications services into a single, low profile antenna solution.

The corporate feed design emplyed by RFI maintains superior pattern control, allowing gain to be maximised with zero tilt variation
over a very broad bandwidth, comparable to that only previously available in exposed diple array configurations. This is acheived in
the preferred form factor of a fully enclosed fiberglass radome, providing a reduction in wind loading, ice loading and tower loading
by comparison.

The CC380 series have been designed with an exceptional power rating of 500W across the band as well as Peak Instantaneous
Power (PIP) rating of 25kW to cater for the peak voltage levels present in large multi-carrier combining environments. RFI’s refined
design processes and proven construction methods acheive a PIM rating of -150dBc, further ensuring performance is
maintained for the service life of the antenna. stability over an extended band coverage

• 500 W continuous power rating
• -150dBc Passive Intermodulation (PIM) rating
• 25 kW Peak Instantaneous Power (PIP) rating
• DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise
• Field invertible
