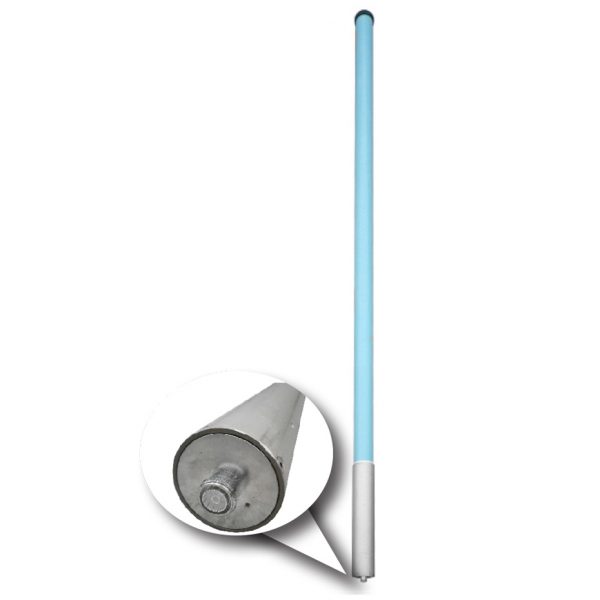

UHF Corporate Collinear, 8.5dBd, 450-520MHz, 3° Downtilt
These industry leading, full featured corporate collinear arrays allow site operators to combine, with complete integrity, a large number of communications services into a single, low profile antenna solution.
CC450-09-T3-P Features:
The corporate feed design employed by RFI maintains superior pattern control, allowing gain to be maximized with zero tilt variation over a very broad bandwidth, comparable to that only previously available in exposed dipole array configurations. This is achieved in the preferred form factor of a fully enclosed fiberglass radome, providing a reduction in wind loading, ice loading and tower loading in comparison.
The CC450 series have been designed with an exceptional power rating of 500W across the band as well as a Peak Instantaneous Power (PIP) rating of 25kW to cater for the peak voltage levels present in large multi-carrier combining environments. RFI’s refined design processes and proven construction methods achieve a PIM rating of –150dBc, further ensuring performance is maintained for the service life of the antenna.
- Extraordinary bandwidth characteristics with superior pattern stability over an extended band coverage
- Lightweight dipole construction using RFI’s patented flexi-PCB architecture maintains a low center of gravity reducing tip deflection and sway
- DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise
- Sealed PTFE insulated cables in harnessing ensure high power capability
- -150dBc Passive Intermodulation (PIM) rating
- 25 kW Peak Instantaneous Power (PIP) rating
Nominal Gain dBd | 8.5 |
Frequency MHz | 450 to 512MHz |
Tunable Bandwidth | Full band |
VSWR | <1.5:1 (14dB) |
Vertical Beamwidth | 8° |
Horizontal Beamwidth | Omni +/- 0.5dB |
Power W | 500 |
Passive IM 3rd Order (2x20W) dBc | -150 |
Construction | Composite fiberglass sky blue radome, aluminum mounting tube |
Length (inch) | 205 |
Radome Diameter (inch) | 3 |
Weight (pound) | 55 |
Termination | Integrated 4.3-10 female |
Mounting Area | 20in x 3.5in diameter aluminum |
Suggested Clamps | UC-1143 |
Downtilt | 3° |
Lateral (Thrust) mph | 123 |
Wind Gust Rating mph | >150 |
Torque @ 100mph ft-lbs. | 909 |
PDF Downloads
- UHF Corporate Collinear – CC450 Series
- CC Series Antennas – Installation Guide
- Corporate Series Catalogue
- Ecofilm™
Digitized Patterns
- To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
Shipping Weight (lbs.) | 80 |
Shipping Dims (inches) | 205x5x5 |
