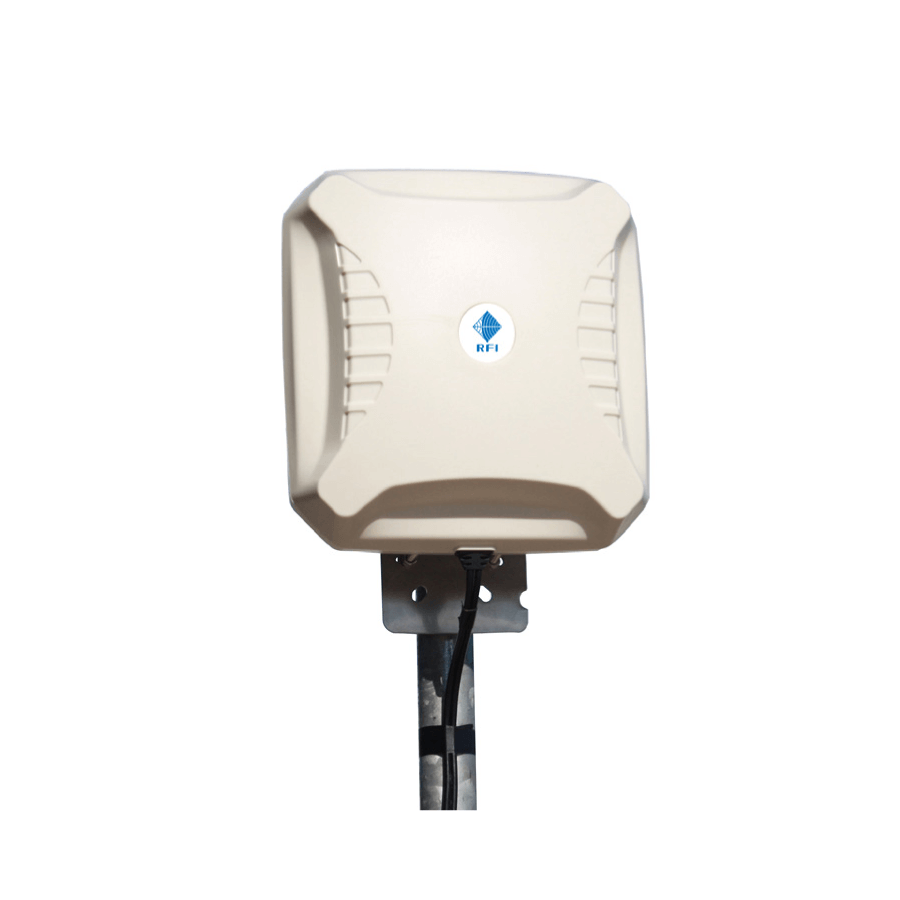

5G LTE MIMO Directional Panel Antenna – 698-3800MHz

The LTE-XPOL-002-5G antenna includes the newer 3400 – 3800 MHz bands, which were
not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna
performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 –
2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in
the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency
bands.

SKU: LTE-XPOL-002-5G Category:

The LTE-XPOL-002-5G is the third generation of this very popular Cross Polarized
(LTE-XPOL-002-V2), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively
looks the same as the second generation “V2” but has been completely redesigned on
the inside. We have used advanced metamaterial technology, making use of Artificial
Magnetic Conductors (AMC) and a new registered/patent-pending radiator configuration,
which is proving to yield exceptional improvements in bandwidth and gain. Radiation
patterns of this antenna are exceptionally well controlled, further adding to the
performance of the antenna.

The LTE-XPOL-002-5G antenna includes the newer 3400 – 3800 MHz bands, which were
not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna
performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 –
2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in
the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency
bands.

Features:

  • 2-3dB higher gain over all the bands compared to “V2”
  • New 3400MHz-3800MHz, 5G band with 11dBi gain
  • Consistent broadband performance
  • X-Polarised 2×2 MIMO antenna
  • Wall or pole mountable
  • Lightweight & rugged
  • Weatherproof & waterproof (IP65)
  • High pattern consistency across bands for 4G/5G carrier aggregation



Nominal Gain dBi 9 dBi @ 698-960MHz , 10 dBi @ 1710-2700MHz , 11 dBi @ 3400-3800MHz
Frequency MHz 698-960MHz, 1710-2700MHz, 3400-3800MHz
Tunable Bandwidth Full. No tuning required
VSWR < 1.5:1 (over 95% of the band)
Polarisation ±45 deg.
Horizontal Beamwidth Omni
Cable 10m Twin HDF-195
Termination SMA male connectors
Mounting Area Wall or pole mount
in else

PDF Downloads

Shipping Weight (lbs.) 7
Shipping Dims (inches) 24x15x10
