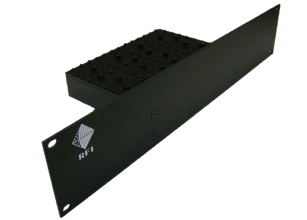

700/800 Duplexer for 762 – 776 MHz and 792-806 MHz passbands
RFI’s range of compact multi-resonator milled aluminium band pass duplexers are ideal for use where space is restricted or at a premium. The relatively broad pass band characteristic, good duplex port to port isolation, high power and multicarrier capability make these ideal duplexers for either single carrier or combined multicarrier systems. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications such as insertion loss and Tx port to Rx port isolation are maintained.
RFI’s range of compact multi-resonator milled aluminium band pass duplexers are ideal for use where space is restricted or at a premium. The relatively broad pass band characteristic, good duplex port to port isolation, high power and multicarrier capability make these ideal duplexers for either single carrier or combined multicarrier systems. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications such as insertion loss and Tx port to Rx port isolation are maintained.
Features:
- 14MHz Pass Band low & high ports
- 30MHz Tx to Rx duplex split
- 100W (CW) Power rating
- Low insertion loss and pass band ripple
- 100W (CW) per port power rating
- 2RU 19” Rack mount front panel
- Compact temperature stable design
| Type | Band Pass |
| Frequency range – Low Pass Port | 762-776MHz |
| Frequency range – High Pass Port | 792-806MHz |
| Pass Band – High and Low Ports | 14MHz |
| Tx to Rx Separation | 30MHz |
| Low & High Pass Port Insertion Loss – typical. | ≤1.5dB |
| Low & High Pass Port – ripple | ≤0.4dB |
| Port to Port Isolation – typical | ≥80dB |
| Input Power (single carrier CW) – max | 100W* |
| Impedance | 50Ω |
| Return Loss / VSWR | ≥19dB / ≤1.25:1 |
| Termination Connectors | N (F) |
| Mounting Option | 2RU 19″ Rack mount front panel |
| Finish | Painted Black |
| Duplexer only dimensions (mm/inches excl connectors) | H 45 (1.7″) x W 124 (4.9″) x D 153 (6.0″) |
| Duplexer with panel dimensions (mm/inches excl connectors) | H 89 (3.5″) x W 483 (19″) x D 156 (6.14″) |
| Weight – approx | 1.9kg / 4.18lbs |
| Temperature Range | -30º to 60º C / -22º to 140º F |
PDF Downloads
| Shipping Weight (lbs.) | 20 |
| Shipping Dims (inches) | 23x15x10 |
