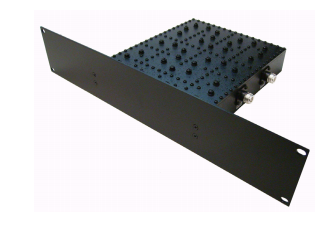

700/800 MHz Triplexer 762-776MHz- 851-869MHz
RFI’s range of compact multi-resonator aluminium triplexers are ideal for use where space is restricted or at a premium. The pass bands are designed for specific applications or markets where low insertion loss and ripple with excellent port to port isolation characteristics provide ideal solutions for multi-band systems. The power rating and multi-carrier capability make these Triplexers ideal for either single carrier or combined multi-carrier systems. The temperature stable resonators provide a wide operational temperature range.
RFI’s range of compact multi-resonator aluminium triplexers are ideal for use where space is restricted or at a premium. The pass bands are designed for specific applications or markets where low insertion loss and ripple with excellent port to port isolation characteristics provide ideal solutions for multi-band systems. The power rating and multi-carrier capability make these Triplexers ideal for either single carrier or combined multi-carrier systems. The temperature stable resonators provide a wide operational temperature range.
Features:
- 2 Port Triplexer – 3 Pass Bands
- 1.5dB Insertion Loss (typical, all pass bands)
- Low pass band insertion loss ripple
- >70dB Port 1 to Port 2 Isolation
- 100W (CW) per port power rating
- Compact temperature stable design
- 2RU 19” Rack mount front panel
| Type | Triplexer |
| Port 1 Pass Bands | 762-776MHz / 851-869MHz |
| Port 2 Pass Band | 792-824MHz |
| Port 1 Insertion Loss – typical | ≤1.5dB |
| Port 2 Insertion Loss – typical | ≤1.5dB |
| Port 1 & Port 2 Pass band ripple – typical | ≤0.5dB |
| Port 1 to Port 2 Isolation – typical | ≥70dB |
| Input Power (single carrier CW) – max per port | 100W* |
| Impedance | 50Ω |
| Return Loss / VSWR – all ports | ≥19 dB / ≤1.25:1 |
| Termination Connectors | N (F) |
| Mounting | 2RU 19″ Rack Mount Front Panel |
| Finish | Painted Black |
| Triplexer only dimensions (mm/inches excl connectors) | H 65 (2.5″) x W 207 (8.15″) x D 260 (10.23″) |
| Triplexer with 2RU panel dimensions (mm/inches excl connectors) | H 89 (3.5″) x W 483 (19″) x D 263 (10.35″) |
| Weight – approx | 3.6kg / 7.92lbs |
| Temperature Range | -30º to 60º C / -22º to 140º F |
PDF Downloads
| Shipping Weight (lbs.) | 20 |
| Shipping Dims (inches) | 24x15x10 |
