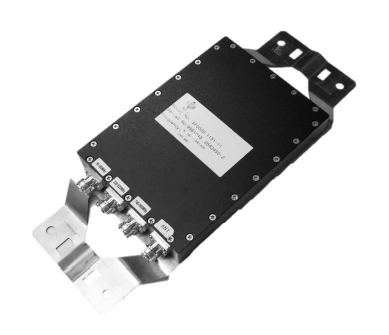

Cross-Band Coupler, Triplexer 30-180MHz / 330-520MHz/ 746-960MHz
The three banded compact cross-band coupler provides low insertion loss and high port-to-port isolation for the desired VHF, UHF and 7/8/900MHz frequency bands. Designed for indoor and outdoor use, the cross-band coupler is provided with stainless steel mounting brackets suitable for either flat surface or pole mounting requirements. Suited for use where a single feeder cable is required to connect to banded antennas or coupling onto a single coaxial feeder in multi-banded systems.
The three banded compact cross-band coupler provides low insertion loss and high port-to-port isolation for the desired VHF, UHF and 7/8/900MHz frequency bands. Designed for indoor and outdoor use, the cross-band coupler is provided with stainless steel mounting brackets suitable for either flat surface or pole mounting requirements. Suited for use where a single feeder cable is required to connect to banded antennas or coupling onto a single coaxial feeder in multi-banded systems.
Features:
- Covers full VHF, UHF and 700/800/900MHz commercial bands
- Provided with wall or pole mount stainless steel mounting bracket
- 30W (CW) power rating per frequency banded port
- Low insertion loss across respective pass bands
- >45dB isolation across ports
- Suitable for both indoor and outdoor environments – IP66
| Model Number | SP0000-1151-11 | ||||
| Type | Cross-Band Coupler / Triplexer | ||||
| Ports | ANT | 1 | 2 | 3 | |
| Frequency Range | 30-960MHz | 30-180MHz | 330-520MHz | 740-960MHz | |
| Pass Bandwidth | 930MHz | 150MHz | 190MHz | 220MHz | |
| Insertion Loss | ≤1.2dB | ≤1.2dB | ≤1.2dB | ≤1.2dB | |
| Pass Band Ripple | ≤0.8dB | ≤0.8dB | ≤0.8dB | ≤0.8dB | |
| Stop Band attenuation | N/A | ≥45dB@ 330-960MHz | ≥45dB@30-180MHz ≥45db@740-960MHz |
≥45dB@30-520MHz | |
| Power rating (CW) | 18dB / 1.29:1 | 30W | 30W | 30W | |
| Return Loss | ≥18dB | ||||
| Impedance | 50Ω | ||||
| Environmental protection | IP66 | ||||
| Termination Connectors | N (F) | ||||
| Mounting | Pole or Wall (flat surface) | ||||
| Finish | Painted Black with S/S Mounting Bracket | ||||
| Cross-band coupler dimensions (excl connectors and brkt) | H 182mm (7.2”) x W 127mm (5”) x D 20mm (1.2”) | ||||
| Weight – approx (including mounting brackets) | 1.3kg / 2.9lbs | ||||
| Temperature Range | -30 to 60deg C / -22 to 140deg F | ||||
PDF Downloads
| Shipping Weight (lbs.) | 5 |
| Shipping Dims (inches) | 16x7x6 |
