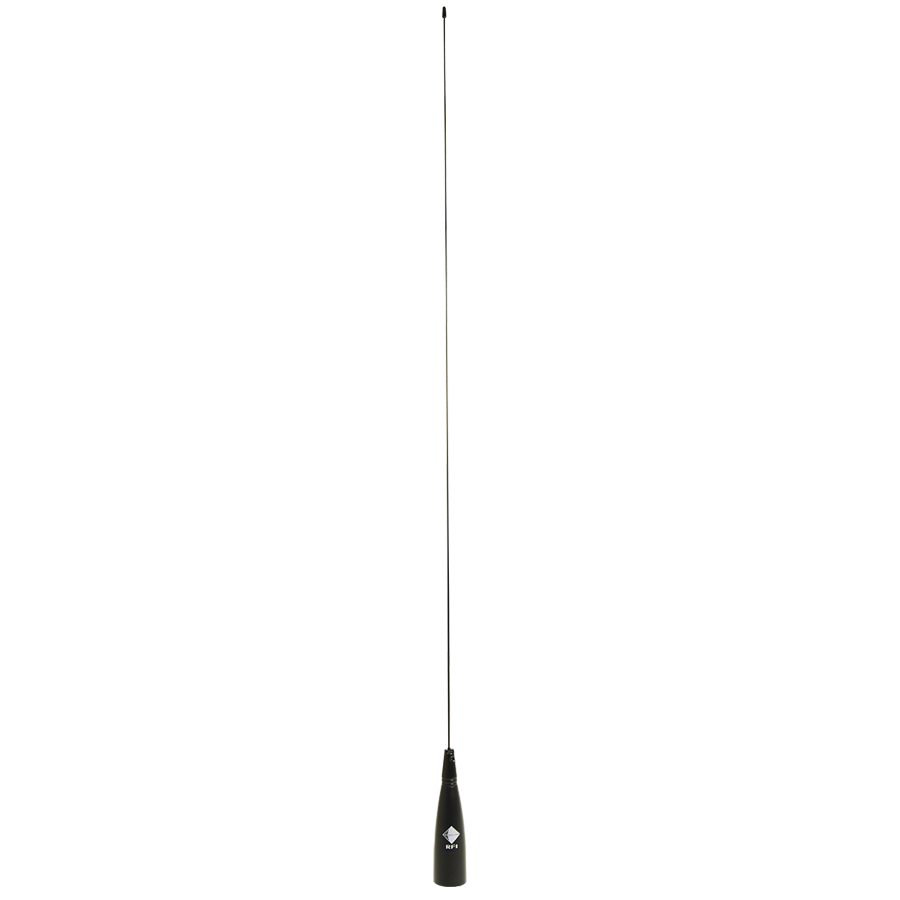

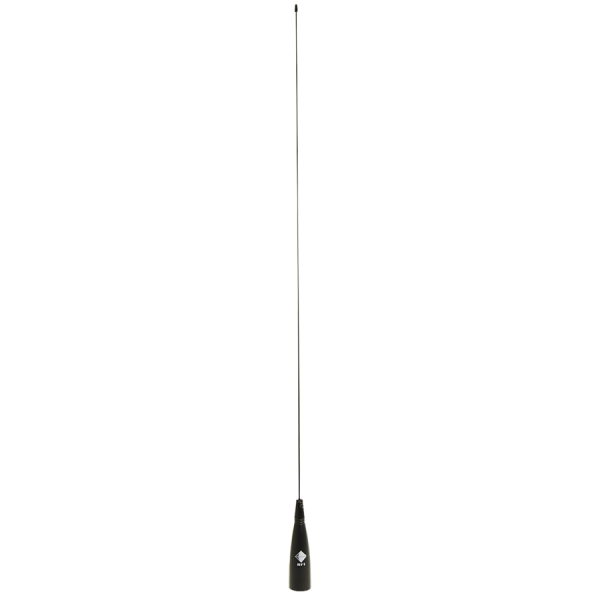

Broadband VHF Mobile Antenna, 118-136MHz, Whip Only

The CD29 Series antennas provide great bandwidth coverage without sacrificing antenna performance. Their
no tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while
improving overall coverage of the desired frequencies. The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered black powder coated stainless steel highly flexible whip. The CD29 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades.

SKU: CD29-118136-00 Category:

The CD29 Series antennas provide great bandwidth coverage without sacrificing antenna performance. Their
no tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while
improving overall coverage of the desired frequencies. The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered black powder coated stainless steel highly flexible whip. The CD29 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades.

Features:

  • Ground plane independent design allows alternative mounting locations
  • Ultra-broadband coverage (118-136MHz, 138-166MHz, or 148-174MHz) means no tuning in the field
  • Highly flexible tapered black powder-coated stainless steel whip
  • Base is virtually indestructible
Band 118-136MHz
Tunable Bandwidth Full
Nominal Gain dBq 4
Power W 25
Cable and Connector Whip only, no MBC base, cable or connector
Whip Material Tapered black powder-coated stainless steel
Suggested Installation Bracket
Whip Length mm 900
VSWR <1.8:1*
Mounting Roof mount on MBC (SO-239) base

* Please note VSWR response may vary between vehicle types and/or mounting locations.

in else
Shipping Weight (lbs.) 3
Shipping Dims (inches) 38x3x3
