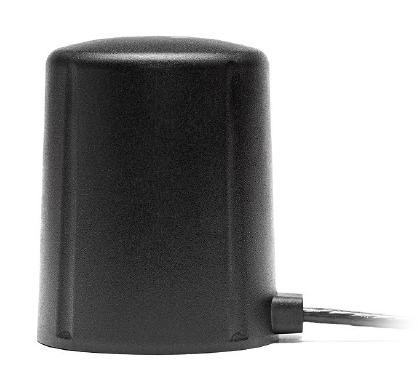

Cellular LTE Magnetic Mount Antenna, 698-2700MHz
The LTE-MAGS Series of magnetic wideband cellular antenna delivers stable, omnidirectional
gain across all common 4G, 3G & 2G global cellular bands from 698 MHz
to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not
require changing antennas when deploying from most major markets worldwide such
as 4G to 3G. The strong magnetic base is extremely robust and uses high-quality
rare earth magnets for a secure magnetic mount to any metal surface.
The LTE-MAGS Series of magnetic wideband cellular antenna delivers stable, omnidirectional
gain across all common 4G, 3G & 2G global cellular bands from 698 MHz
to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not
require changing antennas when deploying from most major markets worldwide such
as 4G to 3G. The strong magnetic base is extremely robust and uses high-quality
rare earth magnets for a secure magnetic mount to any metal surface.
Features:
- Magnetic mount
- High performance
- Ground plane dependent
- Customized cable & connectors (MOQ’s may apply)
- IP69K
| Frequency: | 698-960 / 1710-2170 / 2500-2700 MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 1.8/3.1/2.9 |
| Power W | 25 |
| Cable | 3M RG174 |
| Connector: | SMA Male |
| Radome Material | PC/ABC UV Stable |
| Radome Diameter mm | 54 |
| VSWR | <2.0:1 |
| Length mm | 68.2 |
| Shipping Weight (lbs.) | 2 |
| Shipping Dims (inches) | 8x6x6 |
