LTE Cellular Magnetic Antenna, 698-2700MHz

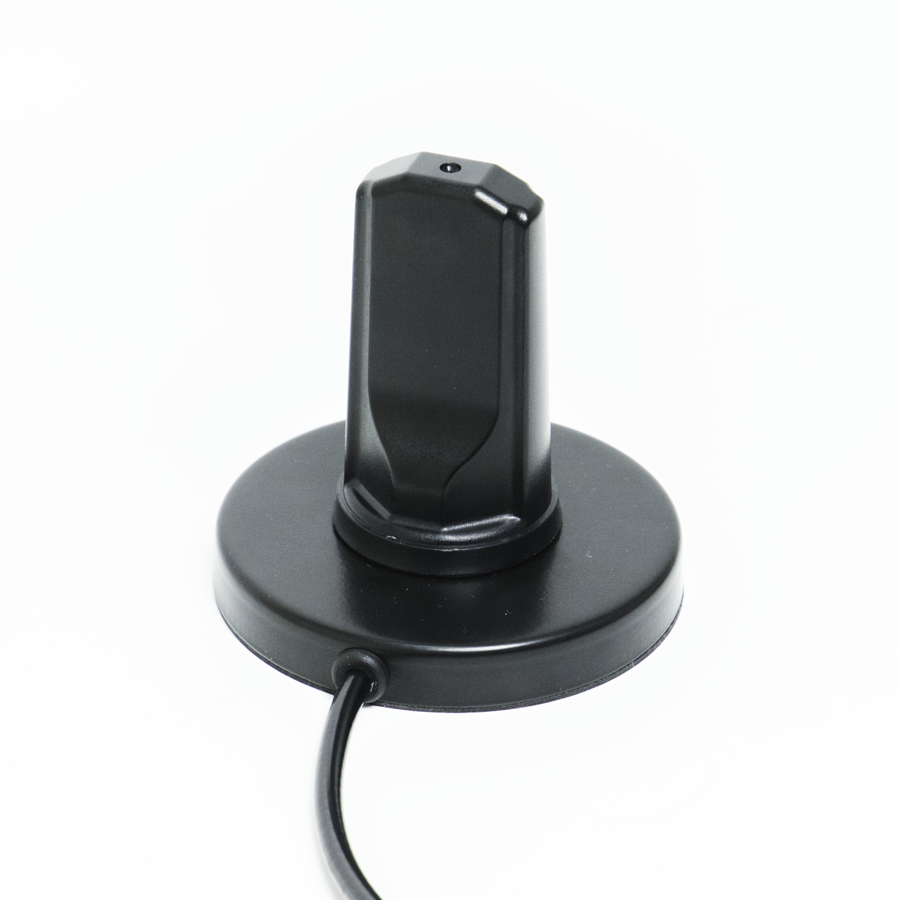

The CSM600-MAG-4M-SMA is a compact LTE magnetic base antenna and is ideal
cellular applications in which a removable or temporary antenna is required. The antenna
uses a microstrip design radiator enclosed in a UV stable ABS radome, mount on an
84mm magnetic base supplied with 4 meters RG58C/U cable terminated with an SMA
male connector.
The CSM600-MAG-4M-SMA is a compact LTE magnetic base antenna and is ideal
cellular applications in which a removable or temporary antenna is required. The antenna
uses a microstrip design radiator enclosed in a UV stable ABS radome, mount on an
84mm magnetic base supplied with 4 meters RG58C/U cable terminated with an SMA
male connector.
It’s a compact low-profile omni-directional LTE antenna that provides excellent coverage
for mobile and fixed data applications from 698-960MHz and 1710 to 2700MHz. The
antenna features an attractive, compact housing which can be used both indoor/
outdoor applications and is IP65 rated.
Features
- Multi-band LTE coverage
- Compact low profile design
- IP65 rating
Frequency: | 698-960 / 1710-2170 / 2300-2700 MHz |
Tunable Bandwidth | Full |
Nominal Gain dBi | 2.5/3.3/4.6 |
Power W | 10 |
Cable | 4M RG58C/U |
Connector: | SMA Male |
Radome Material | UV Stable ABS |
Radome Diameter mm | 84 |
VSWR | <2.5:1 |
Length mm | 83 |
Shipping Weight (lbs.) | 2 |
Shipping Dims (inches) | 8x6x6 |
