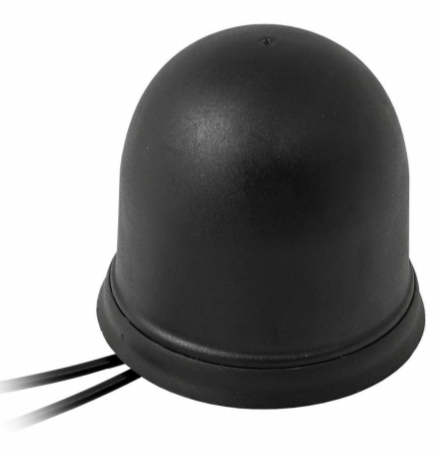

LTE-G-SDA_1

LTE/GPS Dome Antenna, 698-2700MHz & GPS/GLONASS

The LTE-G-SDA Series is a compact low-profile omnidirectional dome-style
antenna, which incorporates both LTE (698-2700MHz) and GPS/GLONASS
antennas. The antenna features an attractive, compact housing which can
be used in both indoor/outdoor applications and is mounted via an M14mm
stud/nut.

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: LTE-G-SDA-1.5M-SMA Category:

The LTE-G-SDA Series is a compact low-profile omnidirectional dome-style
antenna, which incorporates both LTE (698-2700MHz) and GPS/GLONASS
antennas. The antenna features an attractive, compact housing which can
be used in both indoor/outdoor applications and is mounted via an M14mm
stud/nut.

Features:

  • Polycarbonate radome is ideal for outdoor use
  • Attractive, low profile design for maximum overhead clearance
  • Stud mounting offers ease of installation in the field
  • Ingress protection to IP67
Frequency: 698-960 / 1710-2170 / 2500-2700 MHz
Impedance: 50
Tunable Bandwidth Full
Nominal Gain dBi 2/4/3.5
Power W 25
Cable and Connector 2 x 1.5m RG174 / SMA Male
Connector: SMA Male
Radome Material ASA Fiberglass radome
Radome Diameter mm 77.3
VSWR <2.2:1/<1.5:1/<1.6:1
Length mm 65.5
in else
Shipping Weight (lbs.) 2
Shipping Dims (inches) 8x6x6
