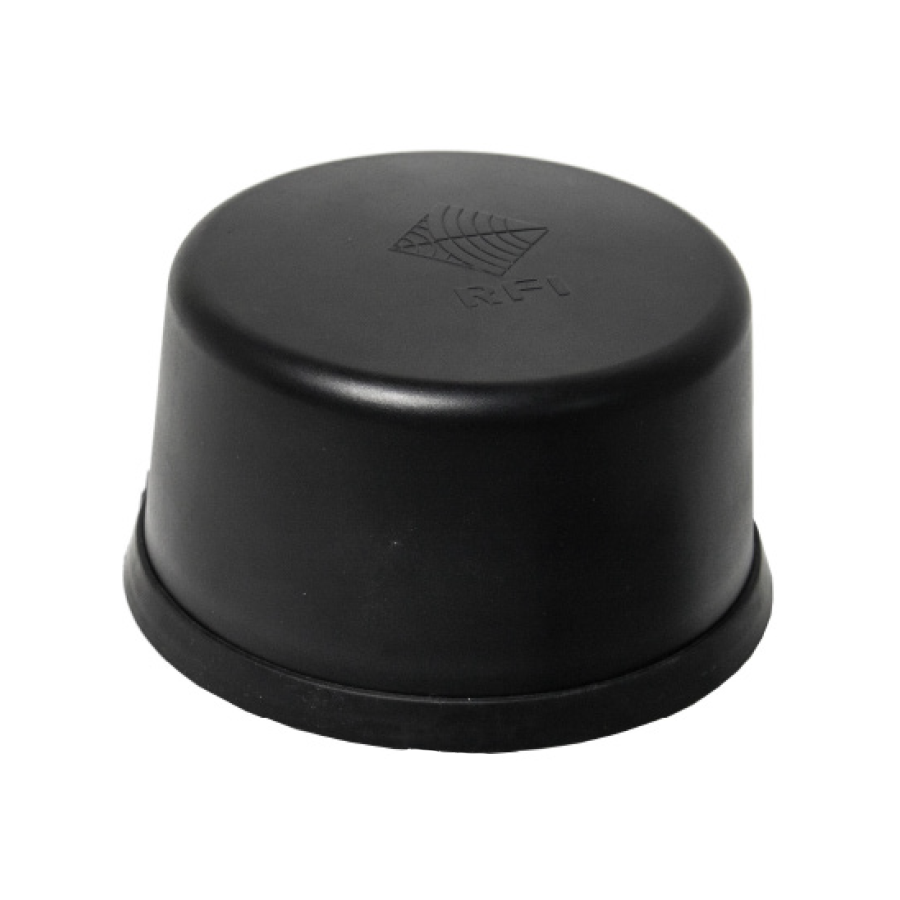

LTE/WIFI MIMO & GPS Low Profile Antenna, 698-2700MHz/2.4 & 5GHz

The LTE-MHP incorporates 5 antennas in a single – ruggedized low profile housing. Two (MIMO) LTE/4G/3G antennas.
covering all cellular bands and also providing increased data speeds and two (MIMO) dual-band WiFi antennas give
blistering speeds at both 2.4 and 5GHz. Plus a fifth high-performance active GPS antenna. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.

SKU: LMHP-GW-1.5M-FS Category:

The LTE-MHP incorporates 5 antennas in a single – ruggedized low profile housing. Two (MIMO) LTE/4G/3G antennas.
covering all cellular bands and also providing increased data speeds and two (MIMO) dual-band WiFi antennas give
blistering speeds at both 2.4 and 5GHz. Plus a fifth high-performance active GPS antenna. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.

Features:

  • No tune, multiband coverage – Dual 4G LTE (MIMO) antennas; Dual WIFI (MIMO) antennas; GPS antenna
  • Metal 16mm Ø stud mount/nut provides single cable exit for easier installation
  • Attractive low profile housing for added overhead clearance
  • IP65 compliant design provides maximum protection against water or dust ingress under severe environmental conditions
  • UV resistant black housing compliments most installations whether fixed or mobile
Band LTE – 698-960 & 1710-2170MHz/ WIFI – 2.4 & 5GHz/ GPS – 1575.42MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi LTE – 2/4; WIFI – 2.4-2.5/5.7/5.8; GPS – 28
Power W 50
VSWR LTE – <2.5:1; WIFI – <2.0:1; GPS – <2.0:1
Height mm 66
in else

PDF Downloads

Shipping Weight (lbs.) 2
Shipping Dims (inches) 10x6x6
