tla2100

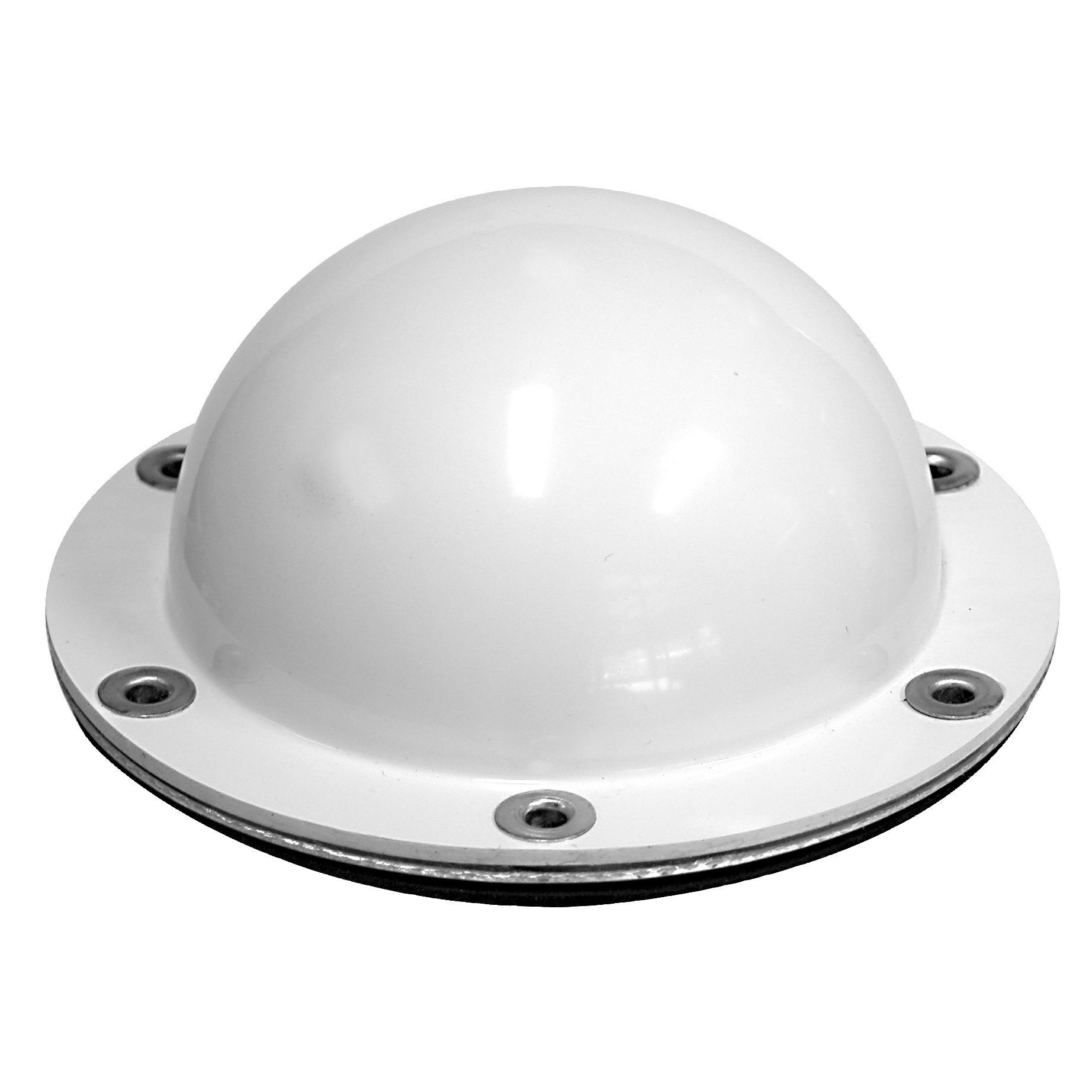

Multi-Band TLA Style Cellular Transit Antenna, 824-2170MHz or GPS

The TLA2100/3100 is an ideal antenna solution for 3G850, 3G900, GSM900/1800, GSM-R1800 and 3G2100 data applications in both fixed and mobile situations. Designed to offer true multi-band performance the TLA2100/3100 is ready for use with the latest modems. With a high impact resistant vacuum-formed ASA radome and neoprene mounting gasket, the TLA2100/3100 can be used for indoor or outdoor applications.

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: TLA3100 Category:

The TLA2100/3100 is an ideal antenna solution for 3G850, 3G900, GSM900/1800, GSM-R1800 and 3G2100 data applications in both fixed and mobile situations. Designed to offer true multi-band performance the TLA2100/3100 is ready for use with the latest modems. With a high impact resistant vacuum-formed ASA radome and neoprene mounting gasket, the TLA2100/3100 can be used for indoor or outdoor applications.

Features:

  • Applications include public vending machines, ATM kiosks, industrial automotive use, asset management and rail
  • Designed for use on conductive or nonconductive surfaces
  • TLA3100 incorporates integrated GPS antenna
Frequency: 824-960MHz, 1710-2170MHz
Impedance 50
Tunable Bandwidth Full
Nominal Gain dBi 2
Verticle Beamwidth Hemispherical
Power W 10
Cable 5M of 9006 cable (Cellular)/ 5m of RG174 cable (GPS)
Connector: SMA Male (Cellular)/ MCX connector (GPS)
Radome Material White Geloy ASA
Radome Diameter mm 135
Mounting Area 135mm O/ +6 mounting holes (suits M4 screws – not supplied)
VSWR <2.5:1
Length mm 61 (including gasket)
in else
Shipping Weight (lbs.) 2
Shipping Dims (inches) 8x6x6
