700/800/900 MHz Panel Antenna 746-960MHz, 60°, 13dBd
The BPA7496 series panel antennas provide excellent gain with a directional radiation pattern, ideal for coverage requirements in “corridor” and sectorised applications. These panels come in a range of gain and beamwidth options, as well as offering adjustable electrical tilt, therefore catering to a wide range of applications.
The BPA series panel antennas provide excellent gain with a range of directional radiation patterns, ideal for coverage requirements in “corridor” and sectorised applications. These panel antennas are fully enclosed to aid installation, provide waterproofing, and to resist bird attack. The main lobe of these antennas is strong, offering excellent beam control, upper side lobe suppression and front to back ratio, ensuring the integrity of the pattern.
Proven design and construction techniques provide not only excellent radiation characteristics but also high levels of intermodulation and noise suppression. IM performance is -150dBc based on a two-carrier test. The antenna rests at ground potential and offers excellent lightning protection and reduced precipitation noise.
Features:
- Analogue and digital technology compatible
- Choice of 60° 120° or 180° beamwidth models
- Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics
- 25kW Peak instantaneous (PIP) rating
- Convenient mounting style suits various pole, mount and wall installation locations
- Manually adjustable electrical tilt (MET)
- DC grounded for superior lightning protection
Nominal Gain dBd (dB1) | 13 (15) |
Frequency MHz | 746 to 960MHz |
Tuned Bandwidth | Full band |
Peak Instantaneous Power kW | 25 |
Polarity | Vertical |
VSWR (Return Loss) | <1.5:1 (14dB) |
Nominal Impedance Ω | 50 |
Downtilt | 2° to 16° adjustable |
Vertical Beamwidth | 14° |
Horizontal Beamwidth | 65° (+/- 5°) |
Upper Side Lobe Suppression dB | < -16 |
Front to Back Ratio dB | ≥ 24 |
Input Power W | 500 |
Passive IM 3rd order dBc | < -150 |
Construction | Fully enclosed in radome |
Length x Width x Depth (in) | 60 x 10.4 x 6 |
Weight (lbs) | 17 |
Weight including clamps (lbs) | 35 |

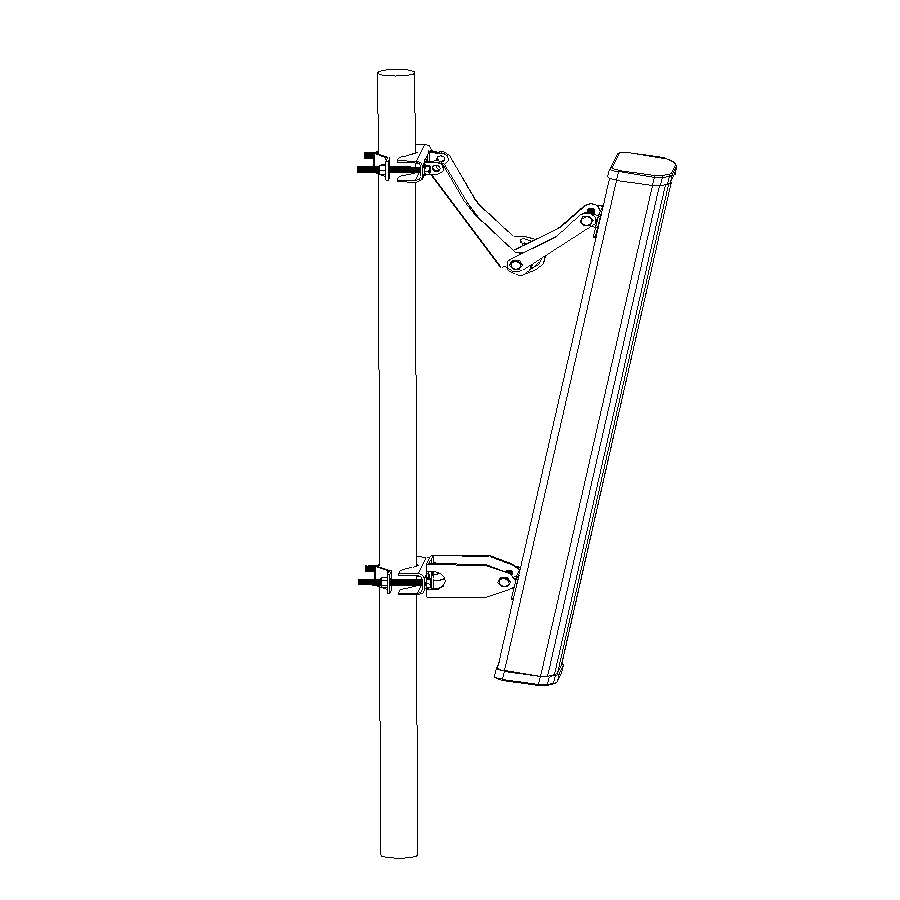

Clamps (provided) | Adjustable mechanical downtilt style (0-8°) |
Clamp Diameter (in) | Ø2.8 to Ø4.7 |
Termination | Integrated 4.3-10 female |
PDF Downloads
Digitised Patterns
- To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
Shipping Weight (lbs.) | 35 |
Shipping Dims (inches) | 43x15x9 |
