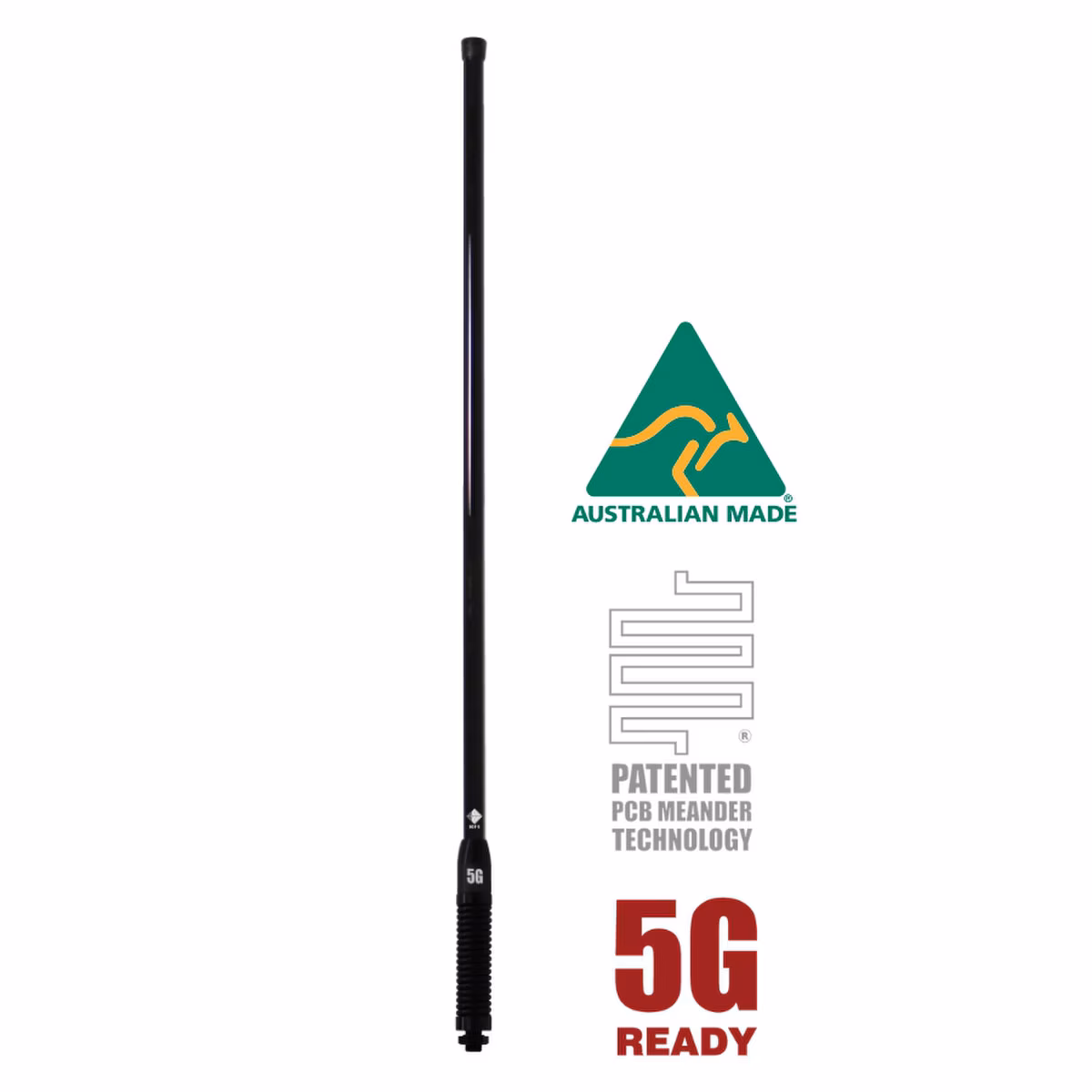

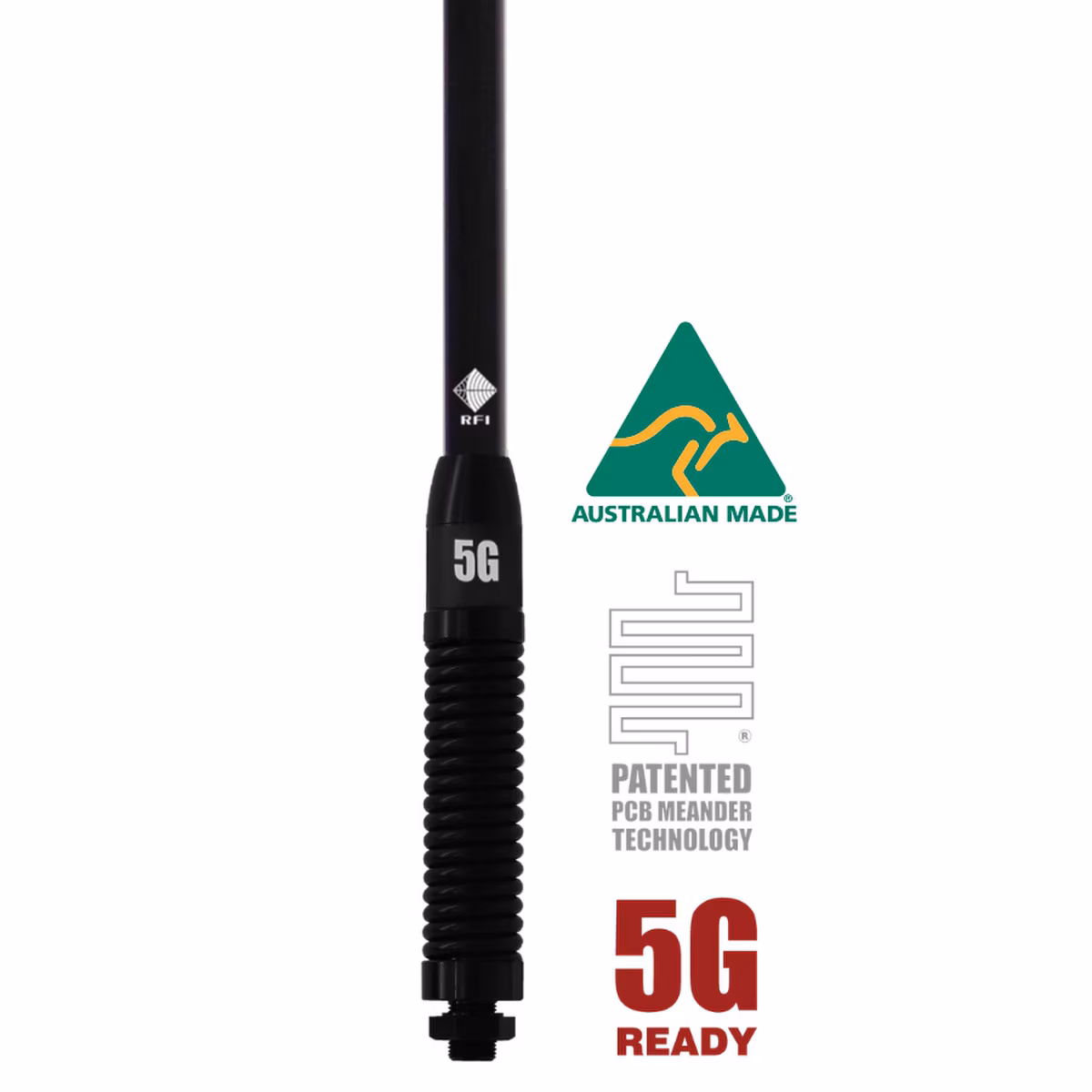

RFI 5G Cellular 6.5dBi PRO SERIES Antenna (698-3800 MHz); 5m SMA(M) – Black
Designed and Manufactured in Australia, Pro-Series antennas feature RFI’s Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
RFI PRO SERIES 5G Cellular 6.5dBi Collinear Antenna (698-3800 MHz)
Black Whip
Spring base with integrated 5m x low-loss flexible cable
SMA male plug connector
Proudly designed and manufactured in Australia
The CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz) and are ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8100 Series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The CD8100 Series Includes an integrated spring with threaded stud/nut for easy installation on vehicles
Check out the range of RFI PRO SERIES Antennas
| Height [mm] | 920 |
| Brand | RFI |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Horizontal Beamwidth | Omni-Directional |
| Mounting Area | 13-16mm diameter hole |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Power [W] | 10 |
| Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMA male connector |
| Whip Material | Fibreglass |
| Packaging | Retail Hang Sell Bag |
| Colour | Black |
| Antenna Type | Collinears, Ground Independent, Meander, Spring Mount, Vehicle |
| Antenna Application | Vehicle Antenna |
| Family | PRO SERIES |
| Antenna Configuration | SISO |
