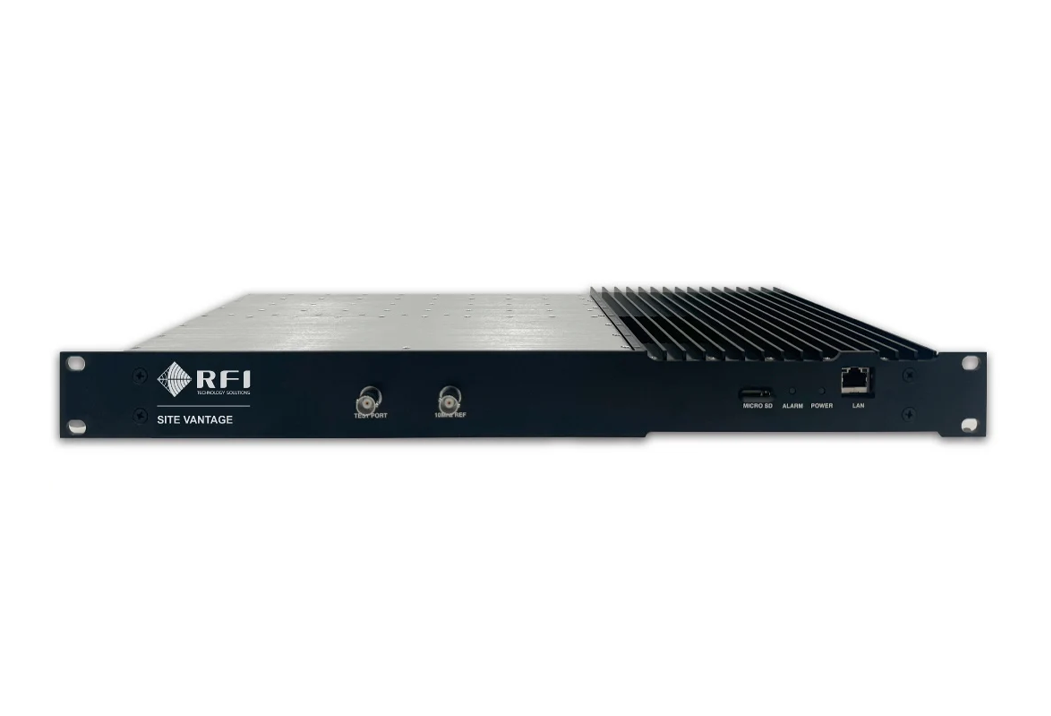

Site Vantage 132-960MHz, 12-60VDC
Site Vantage™ features enhanced and modern hardware and software architecture designed to support new innovative RF monitoring capabilities. These include, but are not limited to, fast monitoring of forward and reflected transmitted power per channel, measuring Tx to Rx antenna isolation, and monitoring Rx RSSI levels for up to 80 channels. Site Vantage™ also boasts a broadband monitoring capability, allowing for RF monitoring in dual or multiband sites using a single device.
RFI Technology Solutions has fully designed and manufactured a new revolutionary product, the Site Vantage™. We have created a powerful tool used for monitoring the performance of RF sites and the overall network efficiency by providing exceptional insights.
The Site Vantage™ benefits from the latest available hardware and software technologies, designed to support new innovative RF monitoring capabilities.
The latest hardware and software technologies include the fast monitoring of the forward and reflected transmitted power per channel, measuring Tx to Rx antenna isolation, and monitoring Rx RSSI levels for up to 80 channels. It also boasts a broadband monitoring capability, allowing for RF monitoring in dual or multiband sites using a single device.
Key Features:
- Enables remote and automated RF site monitoring and fault finding to minimise on-site maintenance and operational costs.
- Non-intrusive and channelised monitoring of Tx forward and reflected power, VSWR, and Rx RSSI in multi-channel, digital, and analogue LMR systems.
- Advanced RF tests to monitor the antenna isolation, Tx filter noise suppression, and Rx system carrier rejection.
- Broadband operation supporting frequencies from 132 to 960MHz.
- Fast channel scan rates.
- Three paired FWD and REV inputs and three Rx inputs.
- Broad input voltage ranges from 12 to 60VDC.
- Advanced cyber security features.
- Supports HTTPS and SNMP v3 protocols.
- Integrated Analogue/Digital Inputs and Alarm Relay Outputs.
- Hardware is ready for future advanced RF monitoring software features.
- Onboard RF Test and Signal Generator ports for easier on-site troubleshooting.
| Frequency range MHz | 132-960 |
| Maximum number of monitored channels | 80 |
| Available Tx FWD and REV power monitoring input ports | 3 |
| Measured RF Parameters | Tx Forward Power per channel Tx Reflected Power per channel Rx Level per channel Rx Composite level |
| Supported RF Tests | Tx to Rx antenna isolation Rx Gain Measurement Tx Rejection |
| Rx monitoring port input range dBm | -125 to -50 |
| Channel measurement bandwidths kHz | 6.25, 12.5, 20 and 25 |
| RF Measurement Accuracy (typ.) dB | ±1 (subject to calibration) |
| Conducted emissions | Complies with FCC Part 15 (15.207) |
| Radiated emissions | Complies with FCC Part 15 (15.209) |
| RF Termination connectors | Tx (FWD & REV) Ports: 4.3-10(F), Rx Ports: BNC (F) Test, 10MHz REF and Sig Gen Ports: BNC(F) |
| Communication interface port | 1 x front mounted, and 2 x rear mounted TCP/IP Ethernet ports (RJ45) |
| Site Alarm Module (SAM) Interface | Rear mounted DB9(M) |
| Programmable Inputs and Outputs | 4 x Inputs (Digital, Voltage and Temperature Sensor Inputs) 4 x Alarm / Logic Relay Outputs |
| Visual alarm notification | Front panel mounted LED |
| Configurable alarms | Summary Fault/ Tx FWD power / VSWR / RSSI (Ant Isolation) |
| Alarm reporting | SNMP v1, v2c and v3 Relay outputs |
| Power supply | 12-60VDC or 100-240VAC with optional plug-pack |
| DC power connector | Polarised 2-pin Phoenix connector |
| Power consumption (typ.) W | 35 |
| Mounting | 1RU 19” rack mounting |
| Net Dimensions (incl connectors) mm / in | H: 43.6 / 1.71 W: 483 / 19 D: 239.7 / 9.43 |
| Net Weight (maximum) kg / lb | 4.2 / 9.25 |
| Environmental Rating | IP20 |
| Operational temperature range °C / F | -30° to +60° / -22° to 140° |
| Compliance | FCC Part15 IEC 61000.6.1, IEC 610006.33, IEC/EN 62368-1 AS/NZS 62368.1:2022, AS/NZS CISPR32 :2015 AMD 1:2020 RoHS |
| Shipping Weight (lbs.) | 9.25 |
| Shipping Dims (inches) | 9.43 |
