UHF Panel Antenna 380-430MHz, 65°, 6dBd
The BPA series panel antennas provide excellent gain with a directional radiation pattern, ideal for coverage requirements in “corridor” and sectorised applications.
The BPA series panel antennas provide excellent gain with a directional radiation pattern, ideal for coverage requirements in “corridor” and sectorized applications. These panel antennas are fully enclosed to aid installation, provide waterproofing, and to resist bird attack. The main lobe of these antennas is strong, offering excellent beam control, upper side lobe suppression and front to back ratio, ensuring the integrity of the pattern.
Proven design and construction techniques provide not only excellent radiation characteristics but also high levels of intermodulation and noise suppression. IM performance is -145dBc based on a two-carrier test. The antenna rests at ground potential, offers excellent lightning protection and reduced precipitation noise.
Features:
- Analogue and digital technology compatible
- Ideal for highly populated sites requiring “corridor” or sectorized coverage
- Industry leading PIM ratings (-145dBc) providing low IM and low noise characteristics for optimum performance
- Convenient mounting style suits various pole, mast and wall installation locations

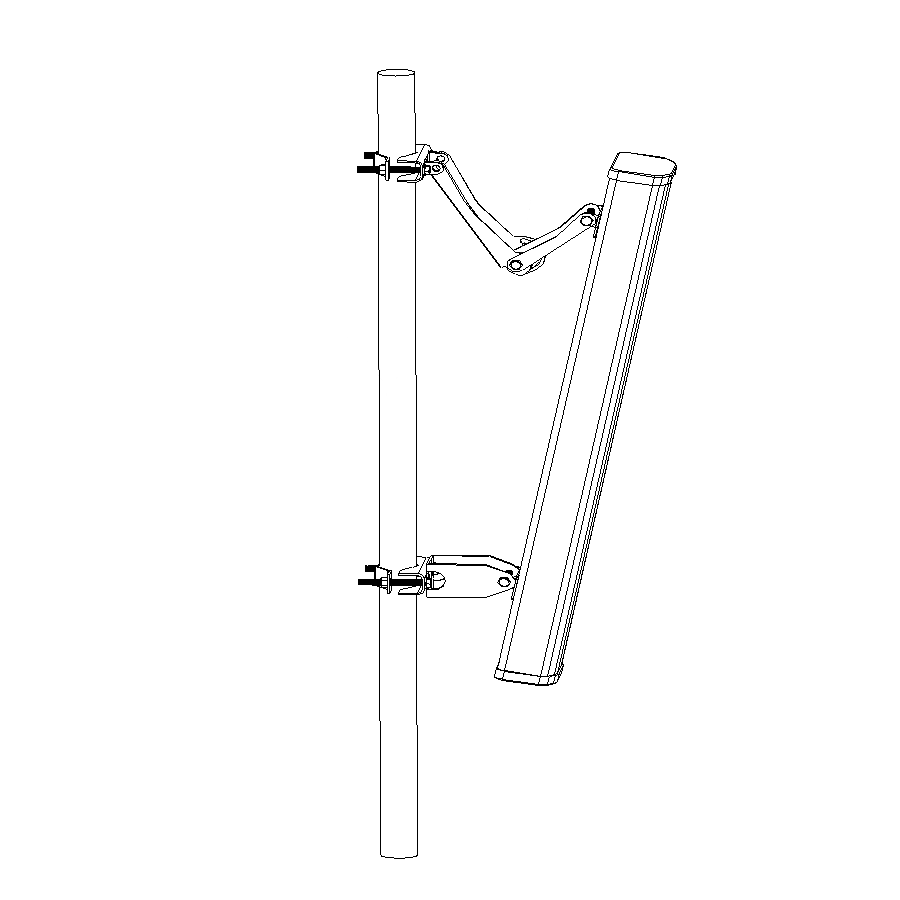

- Mechanical tilt mounting brackets supplied
- DC grounded for superior lightning protection
| Nominal Gain dBd (dBi) | 6 (8) |
| Frequency MHz | 380 to 430MHz |
| Tuned Bandwidth | Full band |
| Polarity | Vertical |
| VSWR (Return Loss) | <1.5:1 (14dB) |
| Nominal Impedance Ω | 50 |
| Downtilt | 0° to 10° adjustable |
| Vertical Beamwidth | 65° |
| Horizontal Beamwidth | 65° |
| Upper Side Lobe Suppression dB | N/A |
| Front to Back Ratio dB | ≥ 16 |
| Input Power W | 500 |
| Passive IM 3rd order dBc | -150 |
| Construction | Fully enclosed in radome |
| Length x Width x Depth (in) | 27.6 x 22 x 8 |
| Weight (lbs) | 28.6 |
| Weight including clamps (lbs) | 35.2 |
| Clamps (provided) | Adjustable mechanical downtilt style (0-8°) |
| Clamp Diameter (in) | Suits Ø2.8 to Ø4.72 |
| Termination | Integrated 4.3-10 female |
PDF Downloads
Digitised Patterns
- To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
| Shipping Weight (lbs.) | 35 |
| Shipping Dims (inches) | 34x15x9 |
