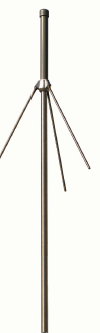

VHF Broadband Monocone Antenna, 136-160MHz
The BMV Series antenna area a range of full band, omni-directional, unity gain, antennas designed for heavy
duty applications including the VHF aeronautical band of 118-137MHz, and VHF high band at 148-174MHz.
The BMV Series antenna area a range of full band, omni-directional, unity gain, antennas designed for heavy
duty applications including the VHF aeronautical band of 118-137MHz, and VHF high band at 148-174MHz.
The full band monocone design lends itself to excellent pattern consistency over a wider bandwidth than
conventional ground plane antennas, and a lower angle of radiation.
This model is constructed of stainless steel mount tube and radiator enclosed in an ABS radome, with
full band covrage offering a “no tune” solution. The antenna is also DC grounded, offering some lightning
protection and a reduction of precipitation static noise.
Features:
- VHF applications with full band coverage
- Simple installation
- Stainless steel construction; high corrosion resistance, and high survivability
- Great coverage, high level null fill
| Nominal Gain dBd | 0 |
| Frequency MHz | 136-160MHz |
| Tunable Bandwidth | Full |
| VSWR | <1.5:1 |
| Vertical Beamwidth | 90° |
| Horizontal Beamwidth | Omni /- 0.5dB |
| Power W | 250 |
| Construction | Polished stainless steel |
| Length (inch) | 59 |
| Weight (pound) | 10 |
| Termination | Bulkhead mounted N-type (F) |
| Mounting Area | 59in. x 1.5in. diam. polished stainless steel |
PDF Downloads
| Shipping Weight (lbs.) | 11 |
| Shipping Dims (inches) | 65x10x10 |
