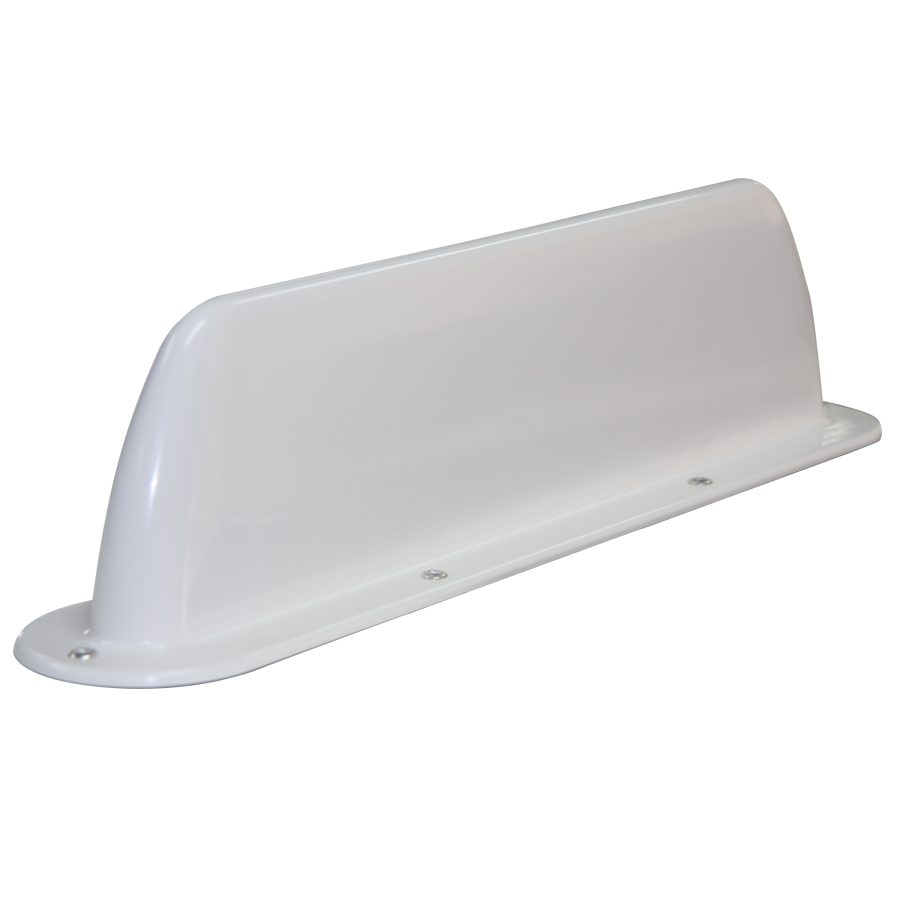

TLR160

VHF Low Profile Antenna, 148-160MHz

Transmission line antenna designs, as used in this group of antennas, provide excellent
omnidirectional radiation patterns for vertically polarised antennas but allow a substantial
height reduction over standard 1/4 wave whip style antennas.

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: TLR160 Category:

Transmission line antenna designs, as used in this group of antennas, provide excellent
omnidirectional radiation patterns for vertically polarised antennas but allow a substantial
height reduction over standard 1/4 wave whip style antennas.

A number of design styles available to suit a variety of applications including heavy duty
industrial, mining, rail, commercial, airforce and security.

Features:

  • TLA-150 – For extra heavy duty applications
  • TLA160 – Lightweight, field tuneable
  • TLR Series – Enclosed radiator, field tuneable
Band 148-160MHz
Tunable Bandwidth 1.6MHz @ 2.0:1
Nominal Gain dBi -2dB over ¼ wave
Power W 100
Whip Material Copper-plated steel element inside an ASA plastic radome
Height mm 104
Termination UHF Female
in else

PDF Downloads





Shipping Weight (lbs.) 4
Shipping Dims (inches) 29x10x8
