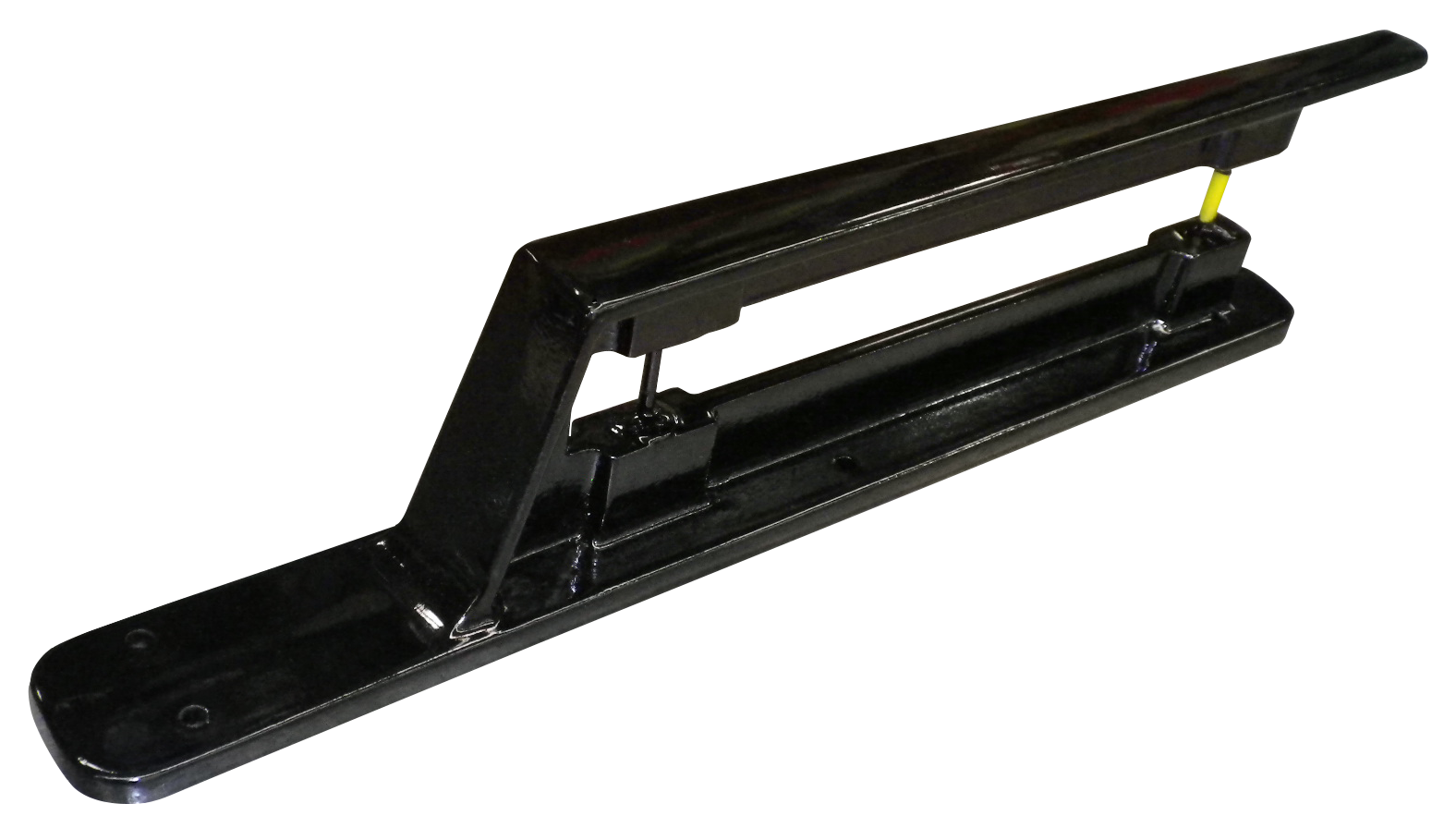

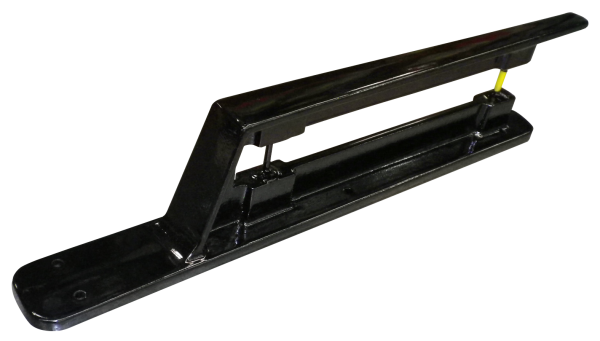

VHF Low Profile Antenna, 166-175MHz

Transmission line antenna designs, as used in this group of antennas, provide excellent
omnidirectional radiation patterns for vertically polarised antennas but allow a substantial
height reduction over standard 1/4 wave whip style antennas.

SKU: TLA150 Category:

Transmission line antenna designs, as used in this group of antennas, provide excellent
omnidirectional radiation patterns for vertically polarised antennas but allow a substantial
height reduction over standard 1/4 wave whip style antennas.

A number of design styles available to suit a variety of applications including heavy duty
industrial, mining, rail, commercial, airforce and security.

Features:

  • TLA-150 – For extra heavy duty applications
  • TLA160 – Lightweight, field tuneable
  • TLR Series – Enclosed radiator, field tuneable
Band 166-175MHz
Tunable Bandwidth 1.5MHz @ 1.5:1
Nominal Gain dBi -2dB over ¼ wave
Power W 100
Whip Material Rugged cast aluminum coated in chlorinated rubber
Height mm 100
Termination N-type Female
in else

PDF Downloads





Shipping Weight (lbs.) 7
Shipping Dims (inches) 24x15x10
