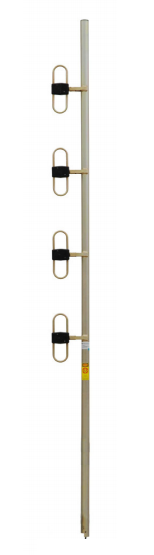

UHF Offset Dipole Array, 11dBd, 400-520MHz
Offset arrays are directional antennas for use when a base station is at one end of the coverage area. These antennas offer industry leading PIM ratings, essential for the latest digital radio systems.
OA Series arrays feature the same solid construction as the BA and EA series. The array utilizes an internal phasing harness in PTFE based double-shielded coaxial cable with polyethylene jacket to aid waterproofing and resist scratch or puncture damage.
The OA Series have slightly more than 170° horizontal beamwidth, thus everything in front of the antenna is given coverage. This eliminates the possibility of fading at the extremities of the target coverage area. The level of radiation at the rear of the antenna is approximately unity gain.
As would be expected from a cardioid array, the vertical beamwidth is slightly greater than its BA omnidirectional or EA elliptical pattern counterparts.
• Hermetically sealed internal phasing harness
• OA80-67-P can be ordered 2 x 9dBd arrays on one boom assembly. Specify model OA4040-67-P. Typical space isolation between the two arrays is 35dB.
|Nominal Gain dBd||11|
|Frequency MHz||400 to 520MHz|
|Tunable Bandwidth||Full band|
|Passive IM 3rd Order (2x20W) dBc||<-150|
|Construction||All welded aluminum with alodined finish.|
|Termination||4.3-10 female with 20in RG142 cable tail|
|Mounting Area||20in x 2.5in diameter aluminum|
- To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
|Shipping Weight (lbs.)||110|
|Shipping Dims (inches)||126x10x17|
