700/800 MHz 15 Element Yagi, 698-890MHz, 13dBd

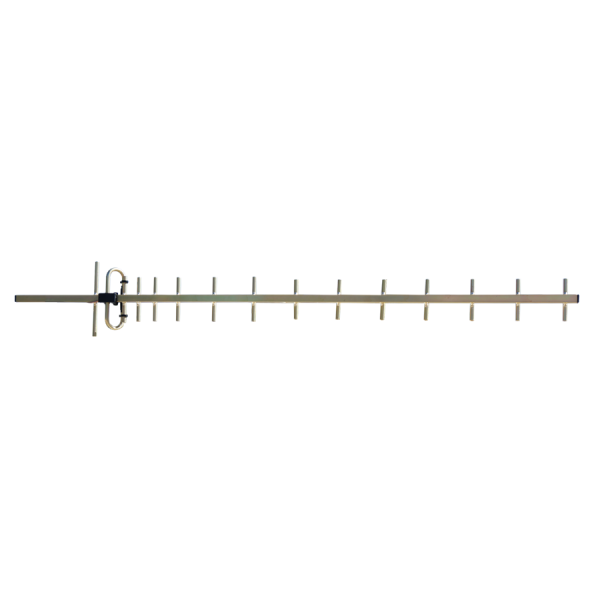

The YW15-6989 is a high gain yagi antenna which provides excellent point to point communications in RF control, short or long haul link, point to multipoint and other applications calling for highly directional antennas.
This model particularly suits cellular 700MHz 4G and 800MHz 3G applications.

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: YW15-6989 Category:

This high gain antenna provides a solution where operation within the 700/800MHz frequency bands. The broad bandwidth also provides network design consistency and benefits to users operating in multiple frequency band segments.

The unique dipole element design delivers excellent performance across the entire bandwidth, with consistently low VSWR and less pattern distortion than dual dipole designs. The passive elements are mounted to the square boom section and welded on both sides to minimise the potential for corrosion or the generation of passive intermodulation (PIM). The antenna rests at ground potential to provide excellent lightning protection and reduced precipitation static noise.

Applications include RF control, short or long haul links, control station combining and telemetry installations requiring a highly directional antenna in point-to-point and point-to-multipoint networks.

Features:

  • Wide band coverage from 698MHz to 890MHz
  • All welded construction for reliability
  • Excellent front-to-back ratio
  • Alodined conductive plating for performance reliability
  • Designed to minimize the generation of PIM
Nominal Gain dBi 13
Frequency MHz 698 to 890MHz
Tunable Bandwidth Full band
VSWR <1.8:1
Nominal Impedance Ω 50
Vertical Beamwidth 35°
Horizontal Beamwidth 38°
Front/Back Ratio dB 20
Power W 100
External Construction All welded aluminum with alodined finish
Length (inch) 61.10
Width (inch) 8.5
Weight (pound) 2.20
Termination N female on 1.6ft RG142 cable
Lateral (Thrust) @ 100mph lbs 24
Wind Gust Rating mph 114
Torque @ 100mph ft-lbs 54
in else

PDF Downloads

Digitised Patterns

    To download the pattern file right click on the file and select “Save Link As”. The desired file format can then be viewed in your network planning software.
Shipping Weight (lbs.) 10
Shipping Dims (inches) 72x10x5
