Grid Antenna – 1710-3800 MHz, Full Band, Low PIM, LTE/5G

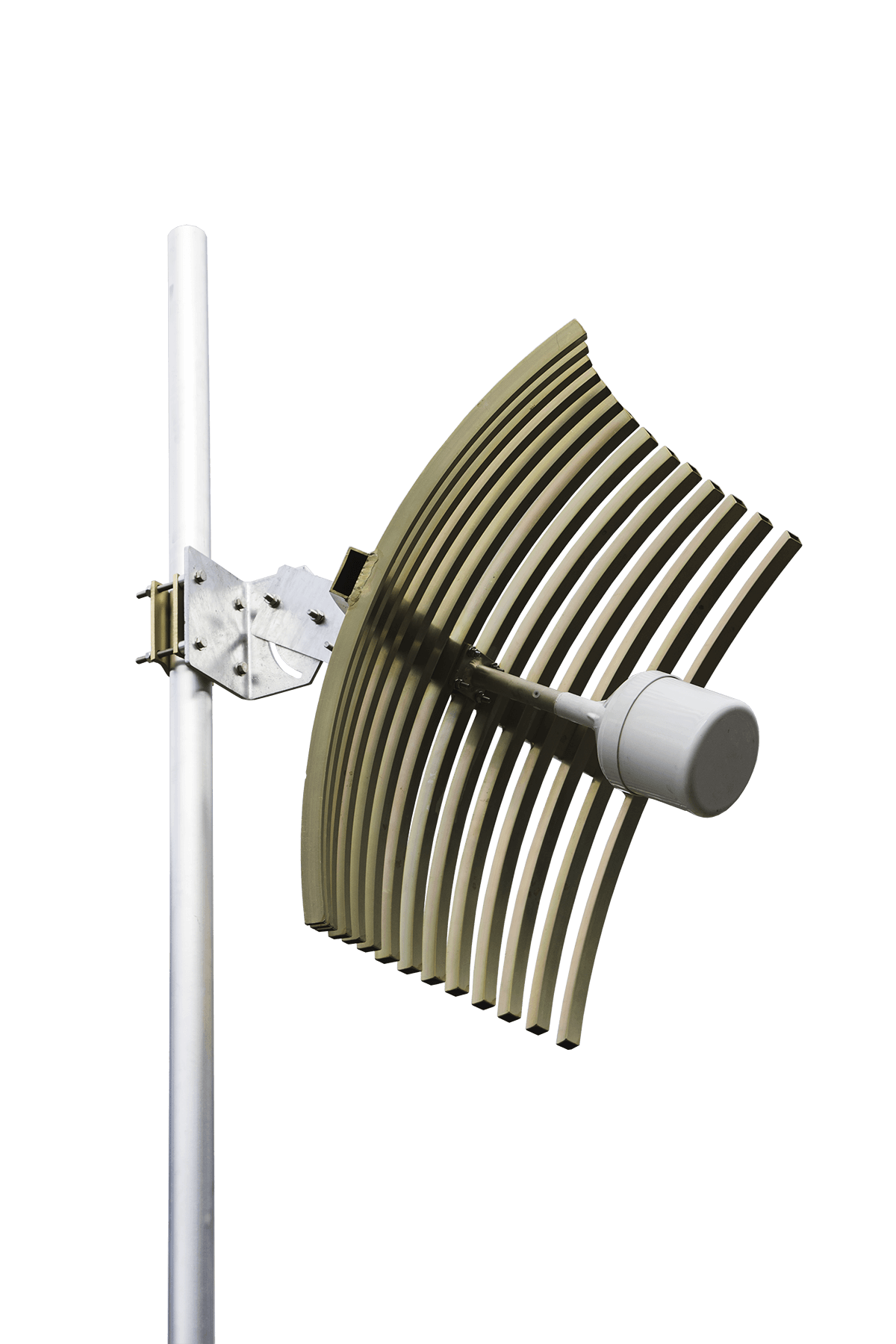

The GA06 mini-grid is a fully welded ruggedized parabola grid, providing highly reliable point to point
or point to multi-point communication.

Utilizing PCB manufacturing techniques, this grid offers best in class reliability and performance, with
Low PIM performance, high reliability as well as pattern stability and more importantly, repeatability.

Call or email RFI to place an order at (330) 486-0706 or [email protected]
SKU: GA06-1738 Category:

The GA06 mini-grid is a fully welded ruggedized parabola grid, providing highly reliable point to point
or point to multi-point communication.

Utilizing PCB manufacturing techniques, this grid offers best in class reliability and performance, with
Low PIM performance, high reliability as well as pattern stability and more importantly, repeatability.
Although highly durable in design, wind loading and weight have been reduced, through respective
design elements, including tubular aluminum, and lightweight, UV stabilized ABS radome and PCB
element.

The integrated mounting clamp offering full articulation and polarisation adjustment; offering more
assistance and reduction in time during installation.

Features:

  • Highly durable
  • Fully articulated mounting design
  • Vertical, horizontal or +/- 45 linear polarization
  • Full wideband operation



Nominal Gain dBi 18.1 dBi @1710-2170MHz, 22.1 dBi @ 2170-2700MHz, 24.1 dBi @ 2700-3800MHz
Frequency MHz 1710-2170MHz, 2170-2700MHz, 2700-3800MHz
Tunable Bandwidth Full. No tuning required
VSWR  1.8:1
Vertical Beamwidth (degrees)  13 @ 1710-2170MHz, 11 @ 2170-2700MHz, 9 @ 2700-3800MHz
Horizontal Beamwidth 13 @ 1710-2170MHz, 11 @ 2170-2700MHz, 9 @ 2700-3800MHz
Cable 1M of RG142
Termination 4.3-10 (F) connector, N-type adaptor included
Power (W) 50
in else

PDF Downloads

Shipping Weight (lbs.) 20
Shipping Dims (inches) 30x24x12
